Logitech | CNC-Machined Acrylic Control Panels for Audio Equipment

1. Customer and Project Background

1.1 Logitech Brand Overview

Logitech is a globally recognized Swiss brand in audio and smart peripheral products. It has a strong market position and brand reputation in consumer electronics and professional audio equipment. For product assembly precision, appearance quality, mass-production consistency, and all-scenario reliability, Logitech applies flagship-level standards typical of leading consumer electronics brands.

1.2 Project Background

For high-end consumer electronics sold in global markets, the machining accuracy, appearance quality, assembly fit, and operational reliability of a functional control panel are as important as the product’s core performance. These factors directly influence how end users perceive the premium positioning of the brand.

In 2010, Logitech’s Tier 1 supplier contacted Spar Panel to develop a black acrylic operation panel for the controller of the Z-5400 home 5.1 surround speaker system. Because this product belonged to Logitech’s global high-end audio product line, the brand placed strict requirements on one-piece machining accuracy, screen-printing durability, flawless appearance control, and mass-production consistency.

The samples from the previous supplier failed Logitech’s quality approval. The main issues included:

• The CNC one-piece machining accuracy of the acrylic panel did not meet requirements. After multiple holes were machined, micro-deformation appeared in the substrate, preventing accurate fit with internal components and affecting final assembly efficiency.

• The adhesion and weather resistance of the screen-printed ink layer were insufficient. Ink peeling appeared after sample testing, failing to meet Logitech’s global visual standards and full product lifecycle requirements.

• Appearance quality control was not strict enough. Sample defects such as edge damage, dirt, and visible flaws did not meet Logitech’s zero-defect appearance requirements for product accessories.

The customer needed us to solve these process challenges quickly, deliver qualified samples, and match Logitech’s new product development schedule and global quality standards. This also placed new demands on our process development and problem-solving capabilities.

2. Technical Challenges and Solutions: Key Process Issues in a Consumer Electronics Acrylic Functional Panel Project

After receiving the customization request, we analyzed the root causes of the original sample failures and identified the project’s three major production challenges:

• Ultra-high-precision one-piece machining: The project required cutting the irregular outer contour, multiple functional button holes, and two sizes of adjustment knob holes from one custom black acrylic sheet. Large chamfered areas around the core knob zones also required polishing. All dimensional tolerances across the panel had to be controlled within ±0.06 mm, while preventing micro-deformation and tolerance drift caused by simultaneous multi-hole machining.

• High-precision, weather-resistant screen printing: The panel surface required the Logitech brand logo, function guidance text, and professional audio certification marks. The printed content had to be clear, evenly colored, scratch resistant, and stable against peeling or fading over the full consumer electronics product lifecycle.

• Flagship-level zero-defect appearance control: All CNC-machined holes and edges required fine finishing, with no burrs, no chipping, and no visible machining defects. The overall panel surface had to meet zero-scratch, zero-dirt, and zero-pitting appearance standards for Logitech’s high-end product line.

During the custom production process, we focused on these three technical challenges and developed a practical, repeatable mass-production solution. After repeated sampling and verification, we finally selected a custom high-stability black acrylic sheet and adopted a full-process integrated solution combining CNC precision integrated machining, high-precision weather-resistant screen printing, and fine chamfer polishing and finishing. The samples passed all reviews by Logitech’s R&D and quality control teams on the first submission and smoothly entered long-term stable mass production.

2.1 Full-Process Control for Ultra-High-Precision Acrylic One-Piece Machining

On the custom black acrylic sheet, we used CNC precision machining to complete the irregular outer contour, multiple functional button holes, and two sizes of adjustment knob holes in one integrated process. The core knob areas also required large chamfer polishing. All dimensional tolerances across the panel had to be controlled within ±0.06 mm, while preventing substrate micro-deformation and tolerance deviation caused by simultaneous multi-hole machining.

To solve these issues, we optimized the process from three core dimensions: tool selection, toolpath strategy, and machining datum control. Based on the requirements of different holes and contours, we matched dedicated carbide milling cutters to prevent chipping and burrs at the process source. Through multiple rounds of simulation and testing, we optimized the toolpath and adopted layered cutting with stress distribution to solve micro-deformation caused by simultaneous multi-hole machining. The full process used the same unified cross-registration reference system to lock machining accuracy, finally controlling dimensional tolerance within ±0.06 mm and ensuring precise fit with the product housing and internal components.

2.2 High-Precision and Weather-Resistant Screen Printing

The panel surface required screen printing of the Logitech brand logo, functional guidance text, and professional audio certification marks. The printed content had to have sharp edges, uniform color without visible deviation, and long-term resistance to peeling, fading, and scratches, fully matching Logitech’s global visual standards.

We selected industrial screen-printing inks with strong weather resistance and scratch resistance, locked the specified Logitech Pantone colors, and optimized the screen parameters and curing process. This ensured sharp printed edges and uniform color. We also completed cross-hatch adhesion testing and scratch-resistance aging tests to verify that the ink layer would remain stable, without peeling or fading, throughout the product lifecycle.

2.3 Refined Polishing and Appearance Quality Control for Acrylic Panels

Because Logitech required flagship-level appearance quality, and scratches or burrs are more visible on black acrylic panels, all CNC-machined holes and outer edges required fine mechanical polishing and manual finishing. The complete panel surface had to meet zero-scratch and zero-dirt standards, matching the premium positioning of Logitech’s high-end product line.

To achieve this standard, we established a full-process closed-loop appearance control system covering substrate incoming inspection, machining, and final inspection. Throughout production, we strictly followed 5S management standards to prevent dust and impurities from contaminating the panel surface. Before materials entered production, all sheets were fully inspected and any scratched or pitted substrates were removed. During machining, multiple in-process inspections were conducted for each batch, focusing on hole accuracy, contour quality, and edge condition. After completion, every part was fully inspected in a clean inspection environment to identify scratches, dirt, burrs, or other potential defects.

For holes and contour edges, we added a dedicated fine-finishing process. Through staged polishing and manual refinement, we eliminated burrs, chipping, uneven chamfers, and other machining defects. This ensured smooth, refined panel edges and a clean, flawless overall appearance, with every part meeting Logitech’s flagship-level appearance quality requirements.

3. Project Results

Through the precise integration of multiple processes, this project fully met Logitech’s flagship-level quality control requirements and achieved long-term stable large-volume delivery. It verified the mass-production stability of black acrylic panels in consumer electronics applications and provided mature supporting experience for custom high-end audio equipment panels.

Cooperation and Delivery Results

Quality and Compliance Results

From machining accuracy and appearance quality control to mass-production stability, this project verified Spar Panel’s capability in custom CNC-machined acrylic panels for consumer electronics. It also demonstrated our integrated ability in multi-process combination, flagship-level quality control, and large-volume stable delivery. For consumer electronics projects that require precision assembly, premium appearance, and long-term reliability, full-process accuracy control and mass-production consistency are the core factors that win the trust of leading global brands.

Through this in-depth cooperation with Logitech, Spar Panel developed five core supporting capabilities for high-end consumer electronics precision panels:

• Ultra-high-precision integrated machining capability: mature acrylic CNC mass-production experience, with stable tolerance control within ±0.06 mm to meet precision assembly requirements for consumer electronics.

• Multi-process integrated customization capability: CNC precision machining, high-precision screen printing, and chamfer polishing can be completed in one integrated production workflow for complex custom panels.

• Flagship-level zero-defect quality control capability: a closed-loop inspection system from substrate incoming inspection to finished-product release, meeting zero-scratch, zero-dirt, and zero-chipping appearance standards for flagship consumer electronics.

• Stable mass-production capability: able to match standardized production requirements for brand automated assembly lines, ensuring dimensional consistency and high yield in large-volume production.

• Global compliance adaptation capability: the full production process follows the ISO 9001:2015quality management system and can meet the quality control and compliance requirements of international brands in global markets.

For Spar Panel, the value of this case is not limited to the successful delivery of a single project. Through long-term in-depth cooperation with Logitech, we accumulated custom manufacturing experience in precision panels for consumer electronics and established a standardized production and quality control system suitable for leading international brands. This laid a strong foundation for our continued support of global consumer electronics brands and more custom high-end audio equipment panel projects.

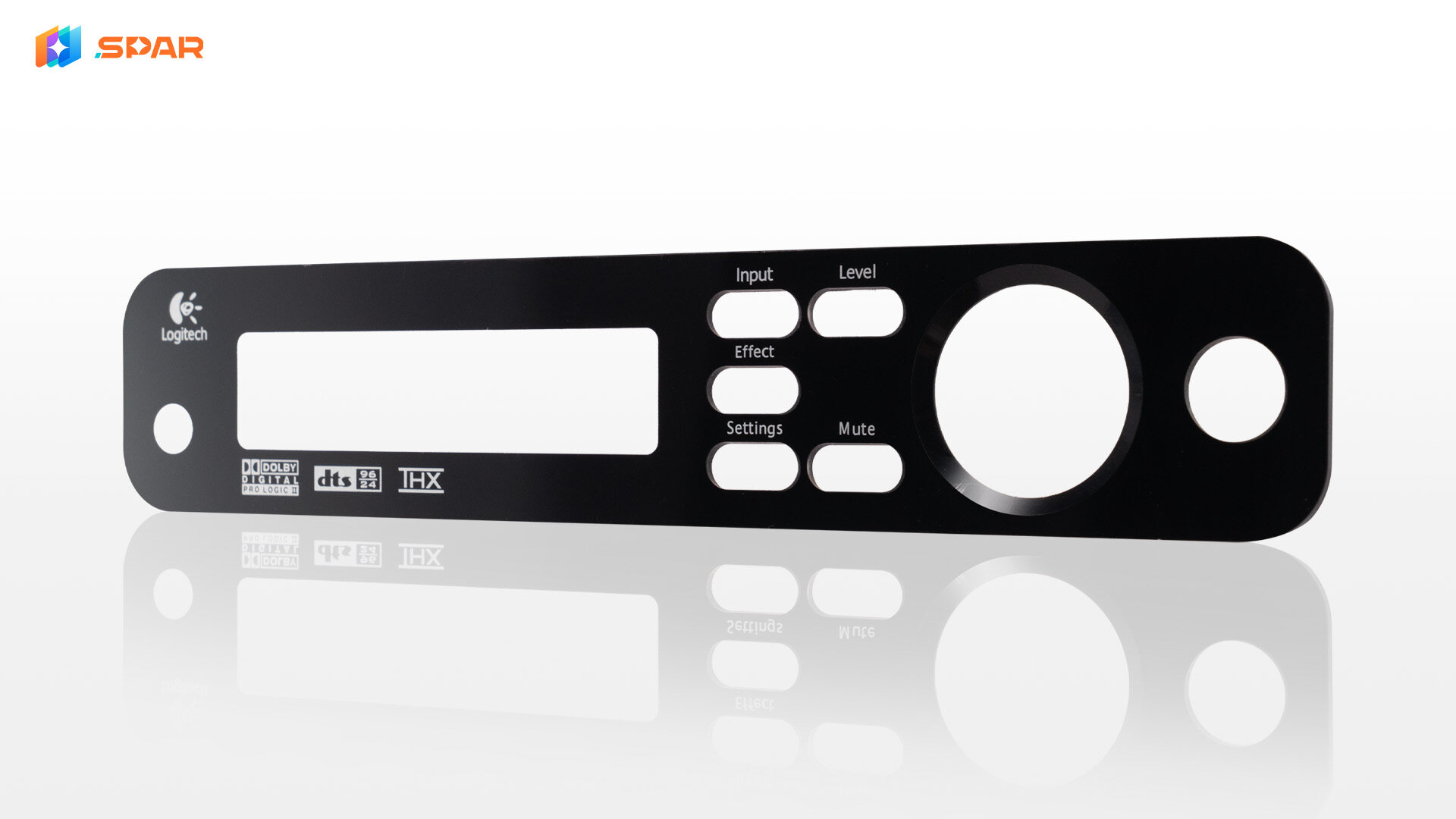

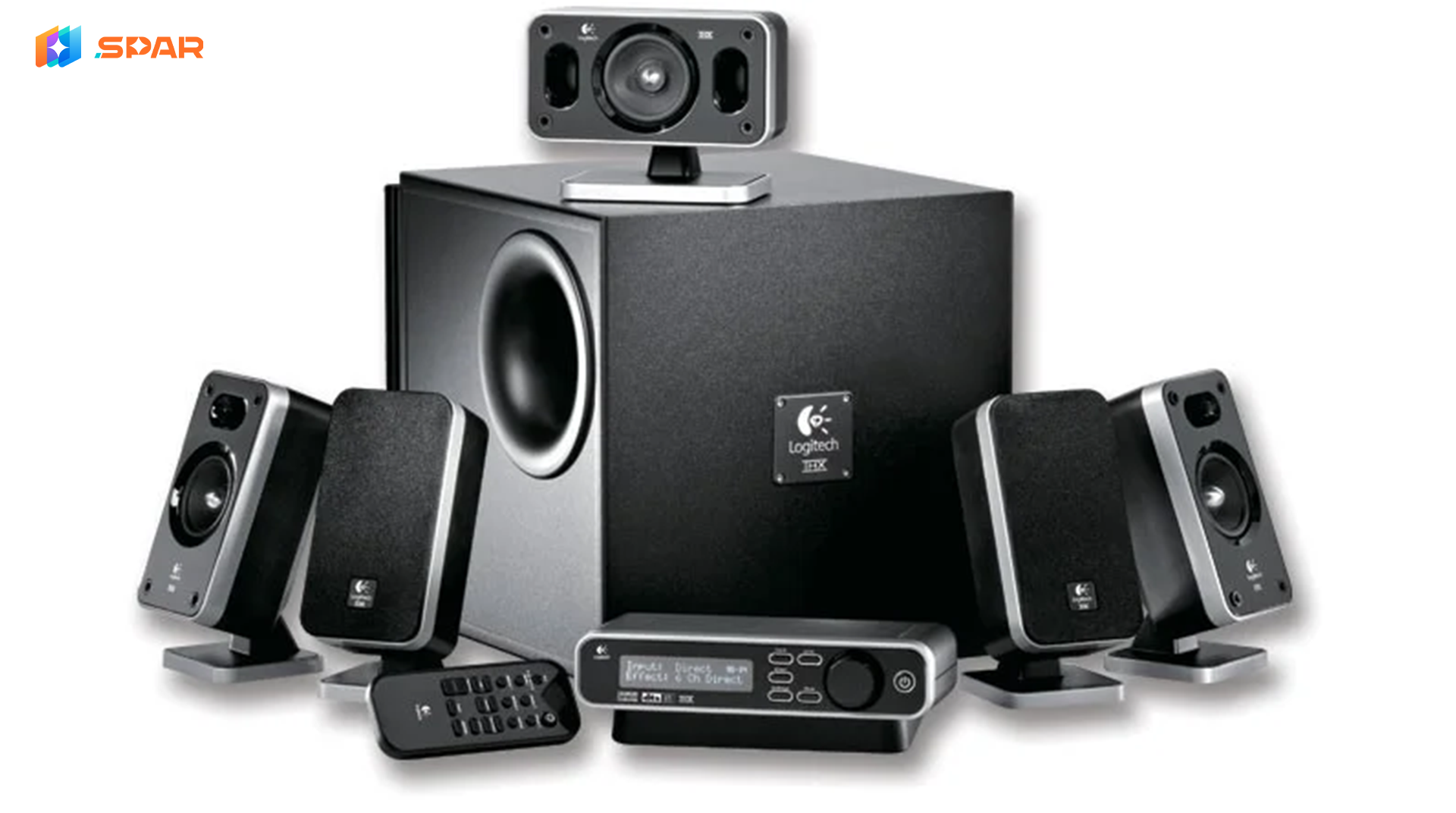

4. Product and Application Scenario Display

5. FAQs

Q1: What is the minimum mass-production dimensional tolerance for acrylic CNC precision machining?

A: Through customized tool selection, optimized toolpaths, and unified datum control, we can stably control the mass-production dimensional tolerance of acrylic CNC integrated machining within ±0.05 mm, meeting precision assembly requirements for flagship consumer electronics products.

Q2: How do you ensure long-term scratch resistance and color stability of screen-printed content on acrylic panels?

A: We use weather-resistant industrial screen-printing inks, optimize curing processes and screen parameters, and verify performance through cross-hatch adhesion, scratch resistance, and aging tests. This helps ensure that printed content remains stable, without peeling, fading, or excessive scratching over the product lifecycle.

Q3: How do you avoid micro-deformation and tolerance deviation during multi-hole acrylic panel machining?

A: We use layered cutting and stress-distribution machining strategies, optimize toolpaths, and match dedicated carbide milling cutters. The entire process uses the same unified cross-registration reference system, helping solve substrate micro-deformation and tolerance deviation caused by simultaneous multi-hole machining.

Q4: What core quality control requirements must acrylic panels meet when supplied to global consumer electronics brands?

A: We have established a full-process closed-loop quality control system suitable for flagship consumer electronics standards, covering three core dimensions: dimensional accuracy, appearance quality, and reliability testing. We implement first-article sign-off, batch inspection, and full finished-product inspection to meet international brand assembly standards and global market quality requirements.

6. Contact Us

Spar Panel is a source manufacturer in China specializing in custom acrylic and polycarbonate graphic overlays. We provide long-term stable support for international brands, with consistent delivery and reliable product quality.

If you need custom acrylic functional control panels, CNC machined acrylic components, or multi-process composite panels for consumer electronics, please feel free to contact us and provide your drawings. We will provide a customized quotation and prototyping service for your project.
