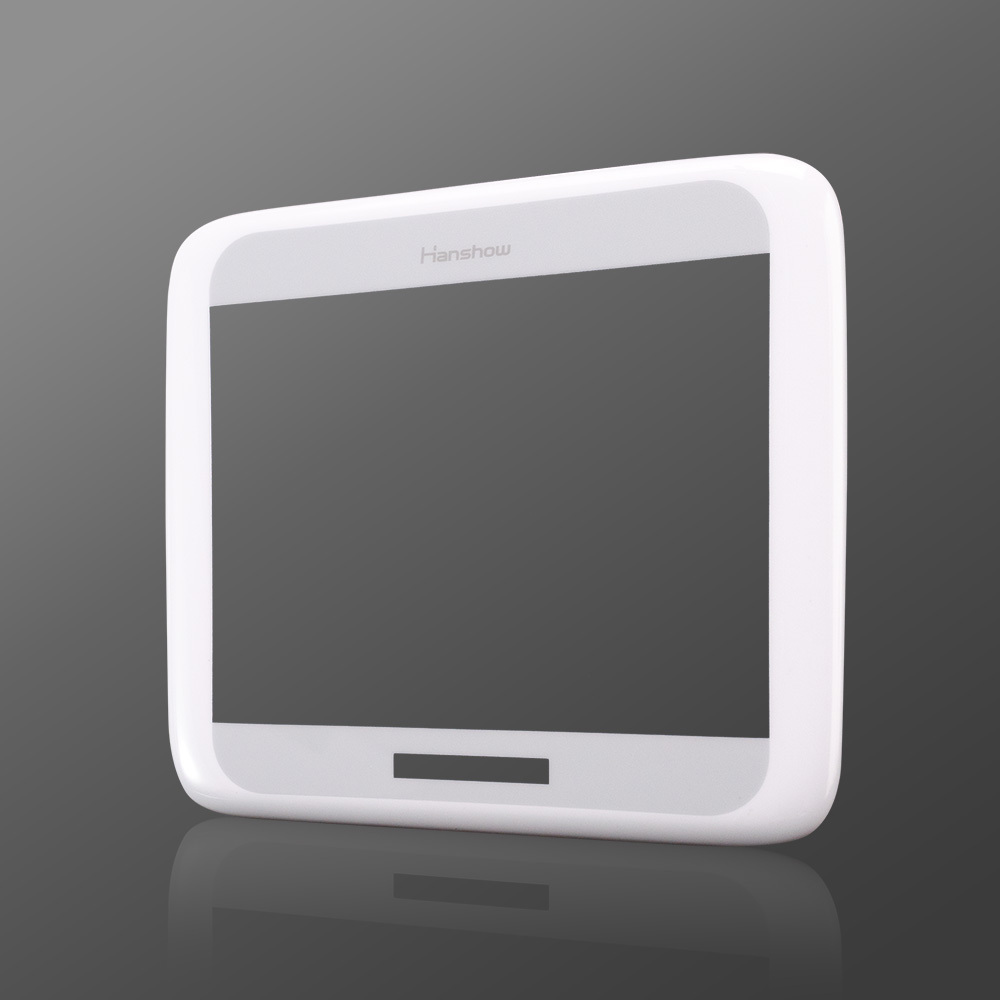

Functional Design Tailored for Self-Service Checkout Systems
These custom graphic overlays are engineered specifically for self-service checkout terminals, targeting manufacturers and system integrators seeking reliable interface solutions. Designed to enhance user interaction, the panels include optimized touch areas and display windows, facilitating intuitive operation for end-users. By integrating surfaces treated for anti-glare and anti-fingerprint properties, these polycarbonate graphic overlays ensure visual clarity even in high-traffic business distribution environments. The product supports minimum orders aligned with volume manufacturing, providing a consistent supply of graphical interface components essential for modern checkout kiosks, improving operational efficiency.
Advanced Technical Specifications Supporting Industrial Requirements
Manufactured from high-grade polycarbonate (Lexan) material, the graphic overlays range in thickness from 0.175 mm up to 6.0 mm, accommodating various application demands. These polycarbonate graphic overlays feature multiple surface finishes, including anti-glare, anti-fog, anti-fingerprint, glossy, and frosted options, enhancing durability and ergonomics. Graphic overlay printing methods such as screen printing and digital printing allow precise customization of interface graphics with high resolution and color fidelity. Maximum print area of 1300x700 mm and cut sizes up to 2500x1000 mm enable compatibility with diverse terminal designs. Adhesives like 3M 93010 and VHB4920 ensure secure attachment, while the operating temperature range from -40°C to 90°C guarantees performance stability under varied environmental conditions.
Industry Applications in distribution and Payment Systems
These custom graphic overlays serve critical functions in distribution self-checkout and electronic payment kiosks by combining aesthetic design with robust physical protection. Their use in front interface panels enhances the durability and visual quality of machines exposed to constant user interaction and wear. The polycarbonate graphic overlay minimizes glare and fingerprints, maintaining operational efficiency and hygiene compliance in business distribution environments. Additionally, the panels support quick replacement or upgrades within existing hardware platforms, ensuring minimized downtime and enhanced lifecycle ROI for automated checkout systems. Graphic overlay manufacturers deliver these tactile surfaces as integral components that satisfy both ergonomic and regulatory requirements across payment and distribution sectors.
Structural and Design Benefits for Integrated System Deployment
Our custom graphic overlays incorporate a modular design enabling seamless integration into various self-service checkout infrastructures. The use of high-performance polycarbonate material provides dimensional stability and mechanical strength critical to survive repeated touch events. These overlays accommodate embossing, printed graphics, and cutouts precisely positioned for touchscreens and display windows, ensuring functional alignment with underlying electronics. The availability of tailored surface finishes allows adaptation to ambient lighting and operational conditions. Combined with industrial-grade adhesives, this system ensures reliable, long-lasting adhesion critical for automated machine maintenance cycles and refurbishment programs, supporting scalability for large-volume production lines.
Enhanced Performance and Operational Efficiency
Performance is optimized through engineering controls on surface treatments enhancing resistance to scratches, fingerprints, and ultraviolet light, thereby reducing maintenance frequency and improving uptime of self-service units. The precise graphic overlay printing delivers consistently clear user instructions and branding, reducing interaction errors and improving user satisfaction. These polycarbonate graphic overlays also demonstrate excellent thermal stability within the specified operating range, assuring consistent tactile feel and visual performance. End-users benefit from improved interface visibility and touch responsiveness. This solution adds measurable value by extending equipment lifespan, lowering total cost of ownership, and ensuring compliance with industry standards for kiosk and payment terminal applications.
| Item | Description | Technical capabilities |
| 01 | Max printing size | 1300x700 mm |
| 02 | Max cut size | 2500x1000mm |
| 03 | Color | As requested |
| 04 | Double side adhesive | 3M93010, 3M93020, 3M9080, VHB4920,etc. |
| 05 | Operating temperature | PC: -40°C- 90°C PMMA: -40°C- 80°C |
| 06 | Finish | Anti-glare surface, Anti-fog surface, Anti-fingerprint surface, Gloosy surface, Frosted surface |
| 07 | Printing | Screen printing / Digital Printing |
| 08 | Logistics transportation | DHL, TNT, Fedex, UPS, SF Express etc. |
Use Scenarios
Self-Service Checkout Terminals in business distribution environments
In distribution settings with high customer throughput, self-service checkout units demand durable, clearly identifiable interface panels to facilitate quick and accurate transactions. These polycarbonate graphic overlays serve as the primary user interface surface, offering anti-glare and anti-fingerprint properties that maintain visibility despite continuous usage. By integrating with touchscreens and display modules, these overlays optimize workflow efficiency and reduce operational disruptions caused by interface wear. Compliance with industrial adhesives and thermal tolerances ensures these overlays remain securely attached and functional in ambient conditions typical of distribution stores, supporting consistent transaction throughput and user satisfaction.
Electronic Payment Kiosks Requiring High Performance Graphic Overlays
Electronic payment kiosks located in often harsh environments such as transit stations or public facilities require robust interface components to ensure reliability and security. The custom graphic overlays manufactured here provide protective surfaces with printed graphics that guide user interactions while resisting wear from frequent use and environmental exposure. Employing high-grade polycarbonate and specialized printing methods ensures the overlays maintain legibility and tactile feedback over time. Integration with adhesive systems compatible with varied substrates guarantees secure mounting within kiosk enclosures, supporting regulatory compliance and minimizing maintenance intervals within complex electronic payment workflows.
What materials are used in your custom graphic overlays?
We manufacture our custom graphic overlays primarily from high-grade polycarbonate (Lexan), acrylic, and PET materials. This ensures durability and clarity for self-service checkout machines. Our panels feature various finishes like anti-glare and anti-fingerprint to meet diverse environmental needs and user interface standards.
Can I customize the size and printing on my polycarbonate graphic overlay?
Yes, our custom graphic overlays support sizes up to 1300x700 mm for printing and cut sizes up to 2500x1000 mm. We provide screen and digital printing options to deliver precise graphics tailored to your specifications. Tell us your requirements, and we’ll implement them with professional accuracy.
What adhesives do you recommend for attaching the graphic overlays?
We suggest using double-sided adhesives such as 3M93010 and VHB4920, which are compatible with our polycarbonate graphic overlays. These adhesives ensure strong, long-lasting bonding while maintaining panel integrity, supporting demanding business distribution environments and consistent usability.
What is the typical lead time for production and sample delivery?
Our standard lead time for custom graphic overlays ranges between 7 to 14 working days, depending on the order size and complexity. We offer samples within 3 to 5 working days after confirming your drawings, allowing you to review quality before full production. Contact us for a detailed timeline based on your order.
