Marshall | Hot-Stamped Polycarbonate Overlays for Amplifiers and Speakers

Since 2014, Spar Panel has customized and developed more than 100 types of polycarbonate panel sticker accessories for Marshall professional speakers and amplifier equipment. Through a combination of precision processes, we helped create highly recognizable visual effects for Marshall products. Over more than a decade, Spar Panel has continued to receive strong recognition from the brand through stable quality control and efficient delivery, and in 2024, we received an Excellent Supplier Trophy from Marshall headquarters.

1. Customer and Project Background

1.1 Marshall Brand Overview

Marshall is a well-known British audio equipment brand founded in 1962. The brand is widely recognized for its classic guitar amplifiers and its strong association with rock music culture. Marshall products are known among professional musicians and audio enthusiasts for their distinctive vintage design, excellent sound performance, and reliable product quality.

For premium audio equipment sold in global end markets, appearance consistency, brand visual presentation, and clear functional markings are just as important as sound performance. These details influence how end users perceive Marshall’s premium brand positioning.

1.2 Project Background

In 2014, the purchasing manager from Marshall’s Hong Kong branch contacted us through the Hong Kong Electronics Fair. They hoped we could prototype a large-format adhesive-backed polycarbonate panel for Marshall’s new DSL series professional guitar amplifiers.

For this project, Marshall required a full-surface brushed gold hot-stamping overlay effect on the panel sticker. This placed strict requirements on appearance consistency, process compatibility, and long-term delivery stability. The Marshall project team told us that they had already asked two suppliers in China to make samples for this accessory, but both encountered the following problems:

• The brushed hot-stamped overlay had poor adhesion and the color came off with light scratching.
• The adhesive backing failed testing, with edge lifting and peeling appearing afterward.
• Some black screen-printed text on the brushed hot-stamped surface appeared blurred.

Marshall therefore expected Spar Panel to avoid these issues and complete the prototype as quickly as possible.

2. Technical Challenges and Solutions: Key Process Issues in a Large-Format PC Hot-Stamped Sticker Project

After receiving Marshall’s sample request, we analyzed the main production challenges of this product:

• The polycarbonate panel sticker was over 500 mm long. A brushed gold overlay had to be produced through hot stamping across such a large surface area, without visible defects, while keeping the brushed texture aligned horizontally with the product surface.
• Black text and icons had to be screen printed on top of the brushed texture, with reliable abrasion resistance and waterproof performance.
• The adhesive had to be strong enough to prevent edge lifting or peeling after application.

During the custom production process, we focused on solving these three core technical challenges and developed practical mass-production solutions. After repeated sample verification, we ultimately selected a 0.5 mm polycarbonate (PC) substrate and used a combined process of brushed matte gold hot stamping plus surface screen printing to achieve the required overlay effect.

2.1 Consistency of Large-Area Hot Stamping

Large-area PC stickers are prone to uneven heating, color differences, and texture inconsistency during hot stamping. For this project, the large brushed hot-stamped area had to be free from visible damage, scratches, missing foil, and similar defects. Otherwise, the premium appearance of the product would be affected and the parts would fail the brand’s incoming inspection standards.

To solve this, we customized a high-precision hot-stamping plate and optimized temperature control and pressure balance parameters. Hot-stamping mass-production accuracy was controlled within ±0.5 mm, better than the common industry level of ±0.8 mm, helping improve the consistency of the entire surface appearance.

2.2 Precision and Durability of Screen-Printed Graphics

This project required black brand text and functional icons to be screen printed on the PC sticker after the brushed texture had already been applied. However, brushed surfaces can easily cause insufficient ink adhesion and registration deviation. Marshall also required the screen printing ink to provide excellent abrasion resistance and waterproof performance, with no fading or blurring after long-term use.

To address this, we selected a high-performance black ink suitable for the textured surface, adjusted the screen parameters and printing process, and used a unified cross-registration reference system across the upstream and downstream processes to control overprint accuracy. After printing, we carried out abrasion, water immersion, and high/low temperature cycling tests to verify the clarity and long-term stability of the printed graphics.

2.3 Adhesive Stability Control

The sticker is applied to the surface of audio equipment, which requires long-term adhesive stability. If the adhesive is not selected properly or the lamination process is poorly controlled, edge lifting, peeling, bubbling, and bonding failure can easily occur during later use.

We used Nitto No. 500 long-term adhesive suitable for PC substrates and optimized the adhesive lamination process to ensure uniform full-surface coverage, with no bubbles or edge lifting. We also conducted a 50-60°C high-temperature test to verify long-term adhesive strength and stability. This ensured reliable performance throughout the product life cycle and significantly reduced after-sales repair risks for the brand.

3. Project Results

Through this project with Marshall, Spar Panel not only achieved stable mass production and delivery of the customized accessory, but also upgraded the product appearance through refined process control. The project delivered results in quality, efficiency, and brand value, received strong recognition from Marshall headquarters, and officially marked the beginning of our stable cooperation with Marshall for more than 10 years.

Delivery and Fulfillment Results

Quality and Cooperation Results

The initial cooperation project described above not only verified the mass-production stability of Spar Panel’s large-format PC hot-stamped stickers, but also demonstrated the practical value of this type of custom accessory in high-end audio equipment applications.

For premium audio equipment projects that must balance visual recognition, functional markings, and long-term durability, stable long-term delivery capability and mass-production consistency are the core standards for evaluating a manufacturing partner, rather than the result of a single prototype.

For Spar Panel, the long-term cooperation with Marshall means far more than the successful delivery of one project. It has helped us build full-process supporting experience for international premium brands, covering process development, mass-production control, delivery response, and quality system establishment. This experience now provides a reusable reference model for more custom projects for high-end electronics brands.

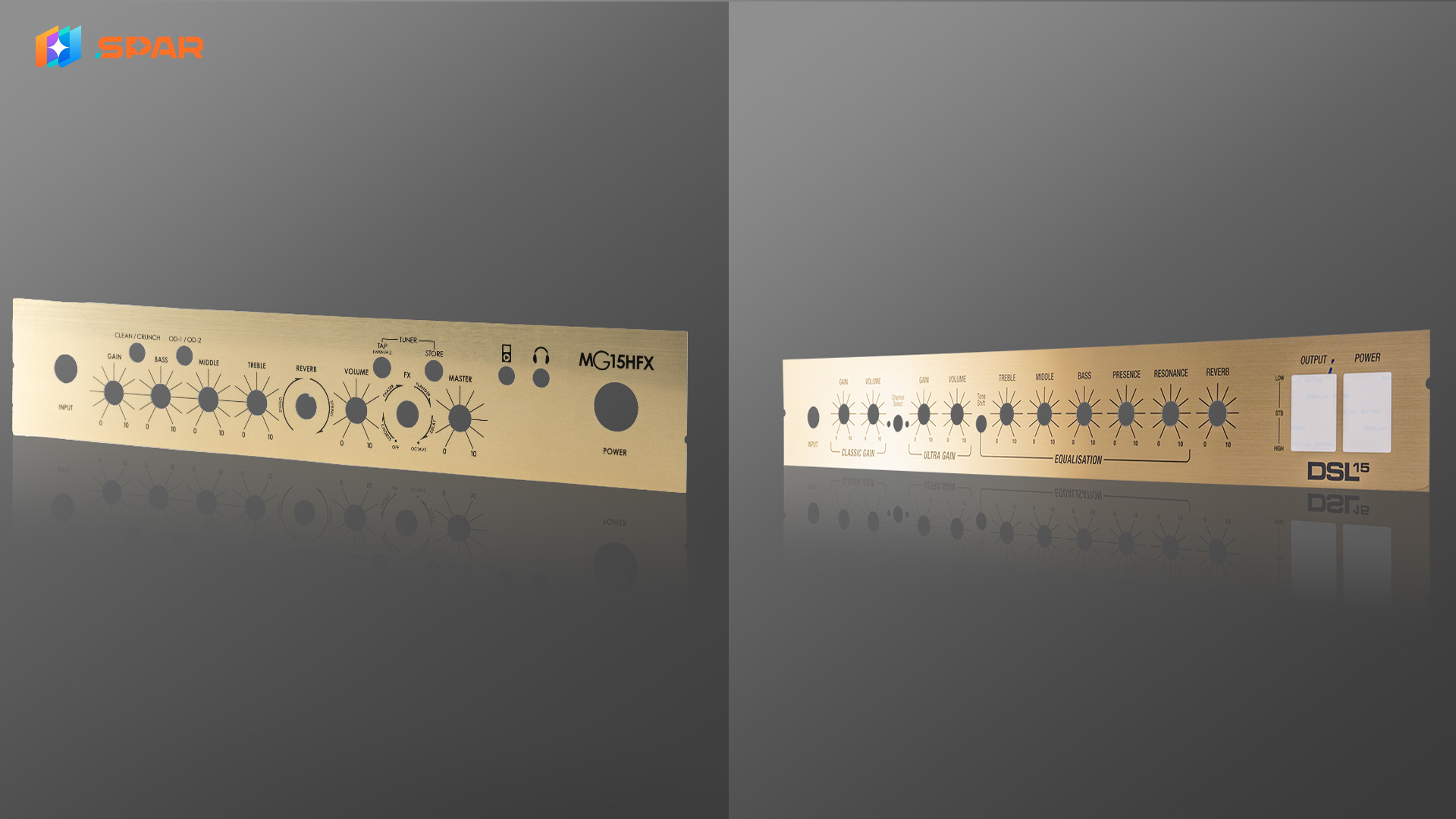

4. Product and Application Display

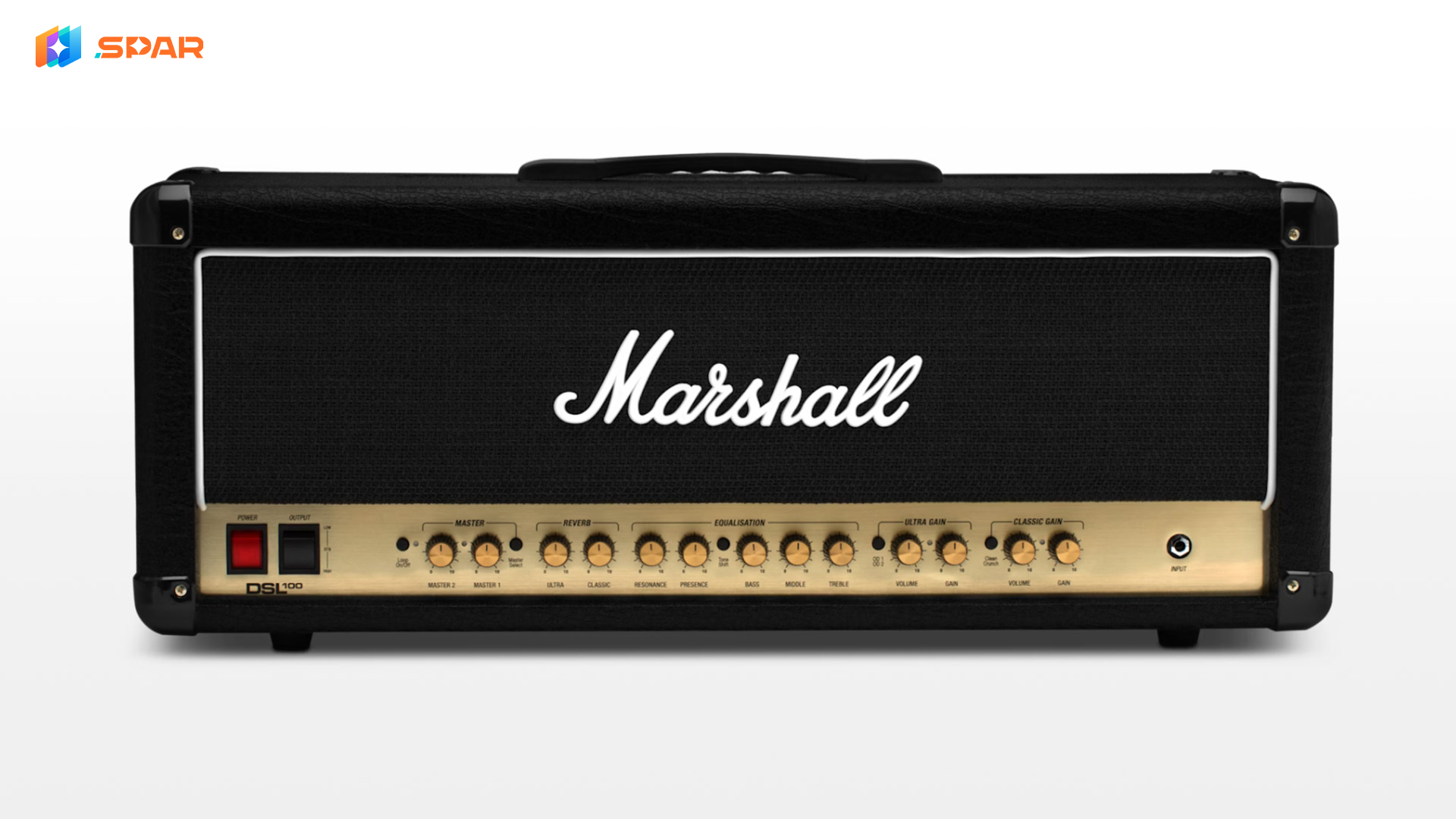

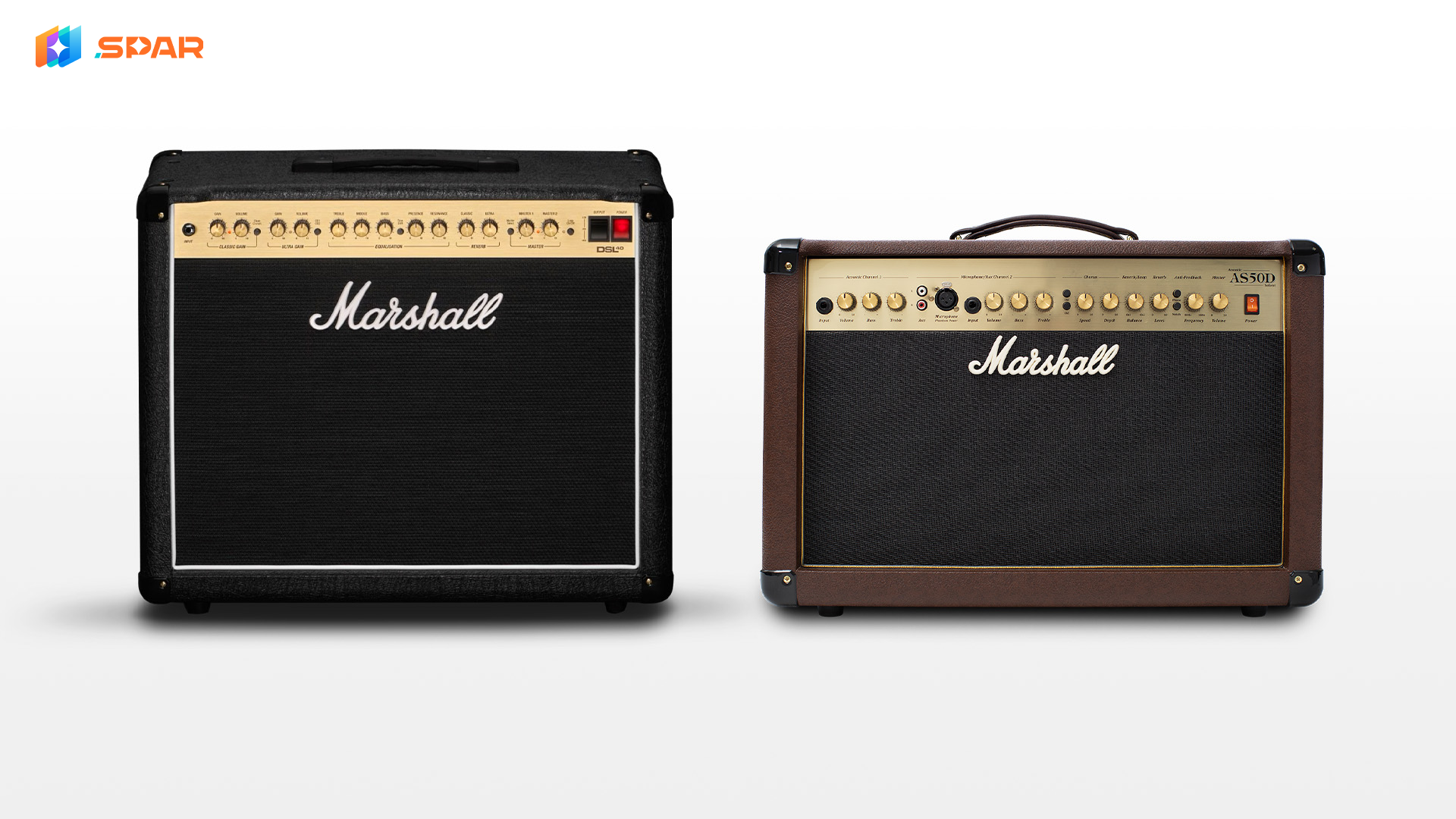

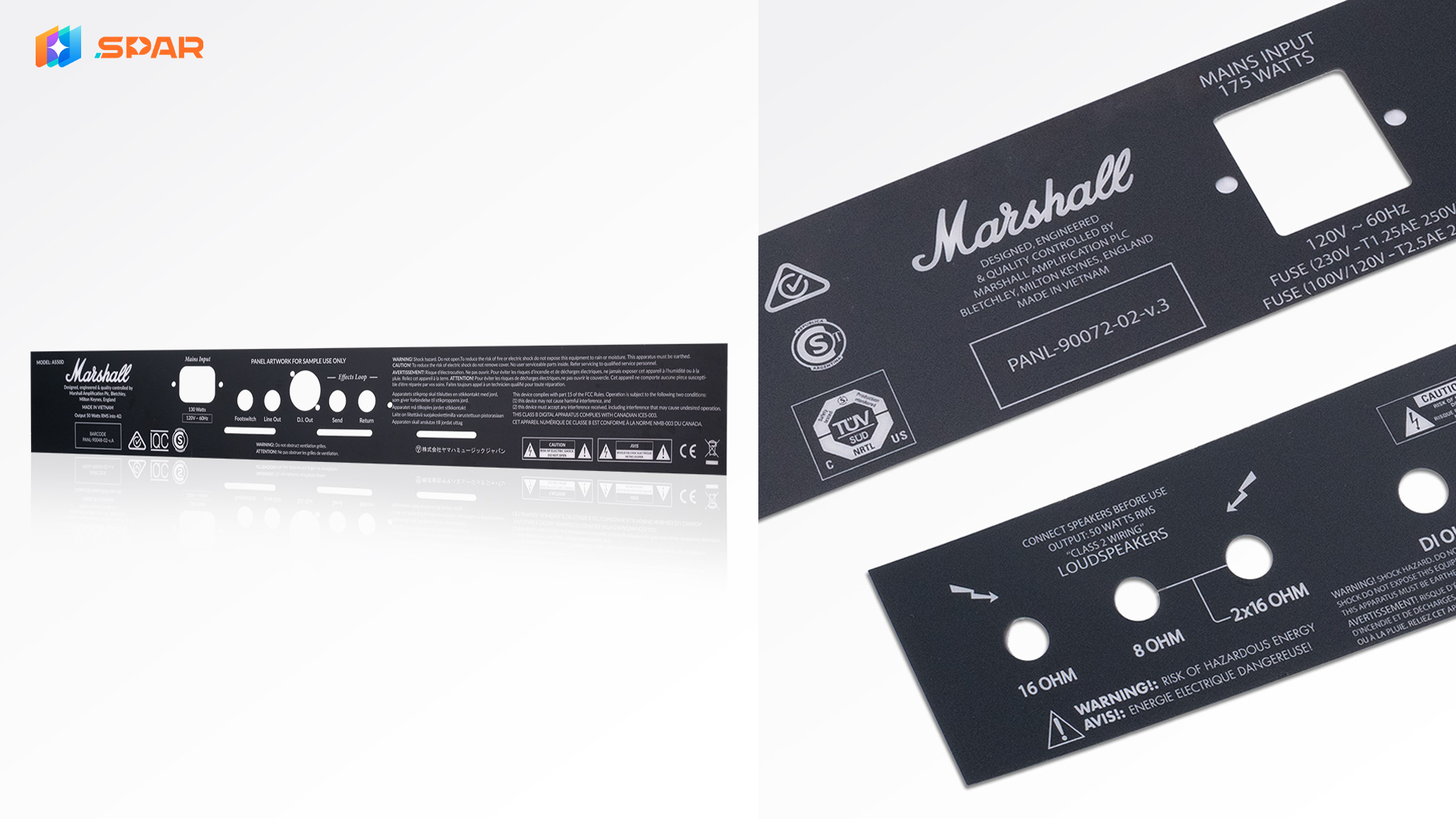

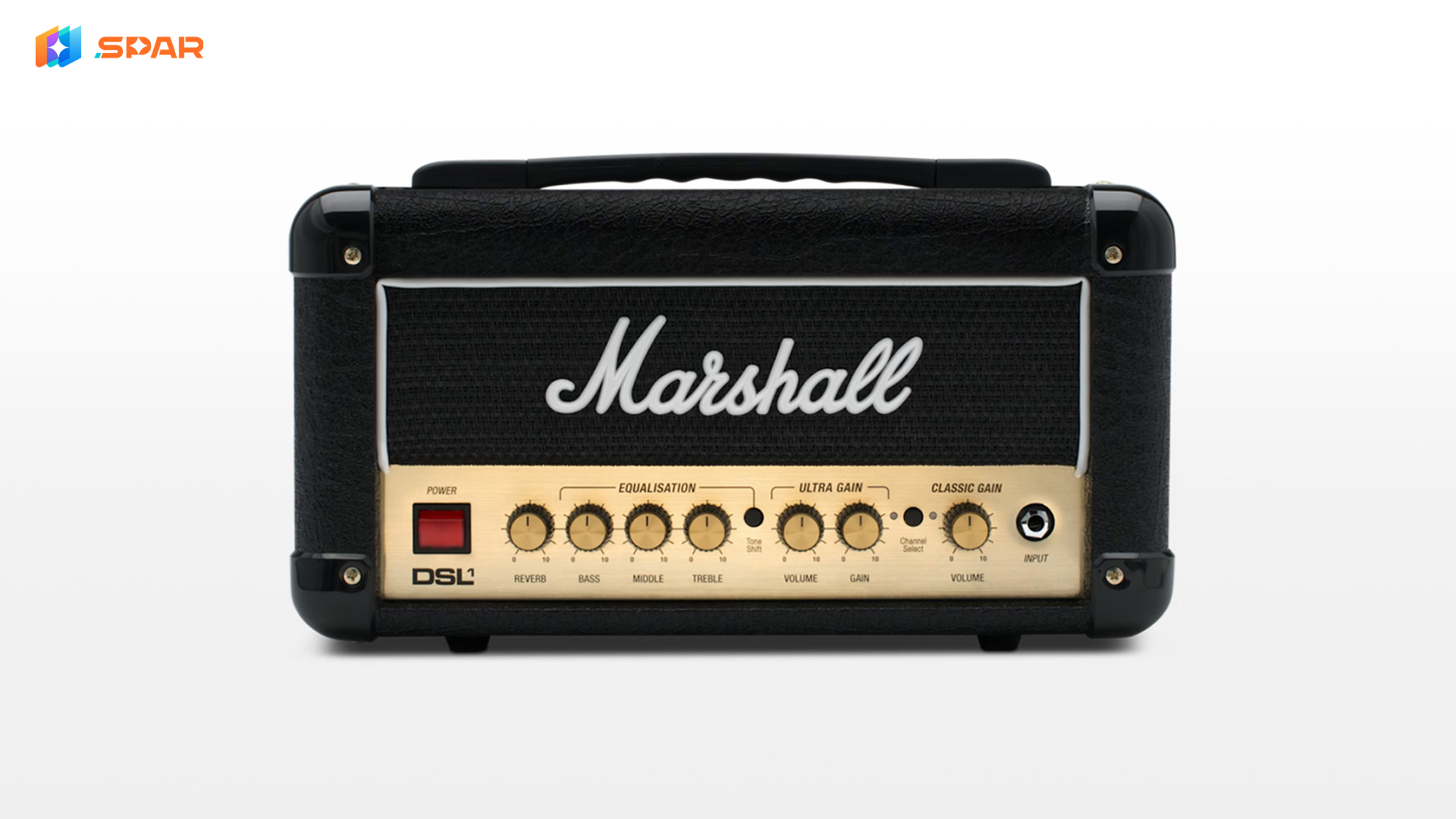

Since 2014, we have customized dedicated PC panel stickers for multiple Marshall professional guitar amplifier and power amplifier products. Among them, the panels using brushed hot-stamping technology feature a refined and delicate texture, which has become one of Marshall’s highly recognizable visual elements and has effectively strengthened product recognition and the brand’s premium appearance.

5. FAQs

Q1: What is the highest mass-production positioning accuracy for hot stamping on large-format PC sticker overlays?

A: By customizing high-precision hot-stamping plates and optimizing temperature and pressure parameters, we can stably control the hot-stamping mass-production accuracy of large-format PC stickers within ±0.5 mm. This is better than the conventional industry level of ±0.8 mm and helps ensure consistent large-area appearance effects.

Q2: How do you prevent PC stickers on audio equipment from edge lifting or peeling?

A: We select Nitto No. 500 long-term adhesive suitable for PC substrates and optimize the lamination process to ensure full adhesive coverage. We also conduct 50-60°C high-temperature stability testing to verify long-term bonding reliability, helping prevent edge lifting, peeling, and bubbling during use.

Q3: What are the sampling and mass-production lead times for custom PC/Lexan stickers?

A: The standard sampling lead time is 3-5 working days after drawings and process requirements are confirmed. After sample approval, the batch production delivery cycle is 10-20 working days, allowing us to respond quickly to new product development and mass-production needs.

Q4: What compliance standards should PC stickers supplied to international brands meet?

A: Our full production process follows the ISO 9001:2015 quality management system and can meet RoHS and REACH environmental compliance requirements, supporting global market access for international brands.
