1. Customer and Project Background

1.1 Yuwell Medical Brand Overview

Yuwell Medical is a leading Chinese home medical device brand with strong market recognition in home blood pressure monitoring, rehabilitation care, and related medical equipment fields. As a company deeply rooted in the healthcare industry, Yuwell follows strict medical industry requirements and home-use safety standards for operational reliability, long-term stability, process precision, and safety compliance.

Since the beginning of our cooperation, Spar Panel has continuously supplied custom acrylic functional display panels and PET embossed button panels for Yuwell electronic blood pressure monitor product lines.

1.2 Project Background

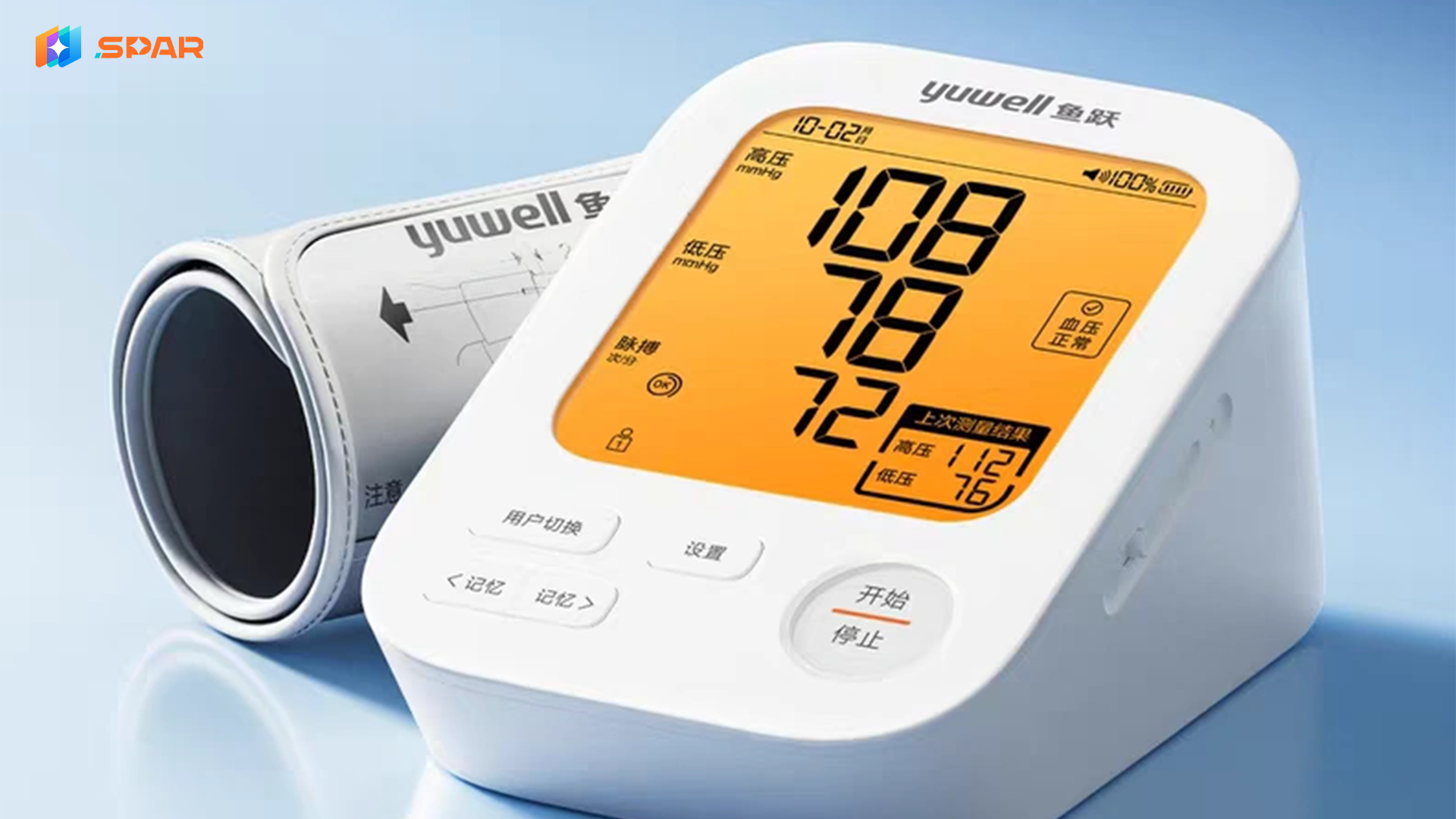

For home-use electronic blood pressure monitors, the acrylic display panel and PET embossed button overlay are two core interactive components that directly affect user experience and device reliability.

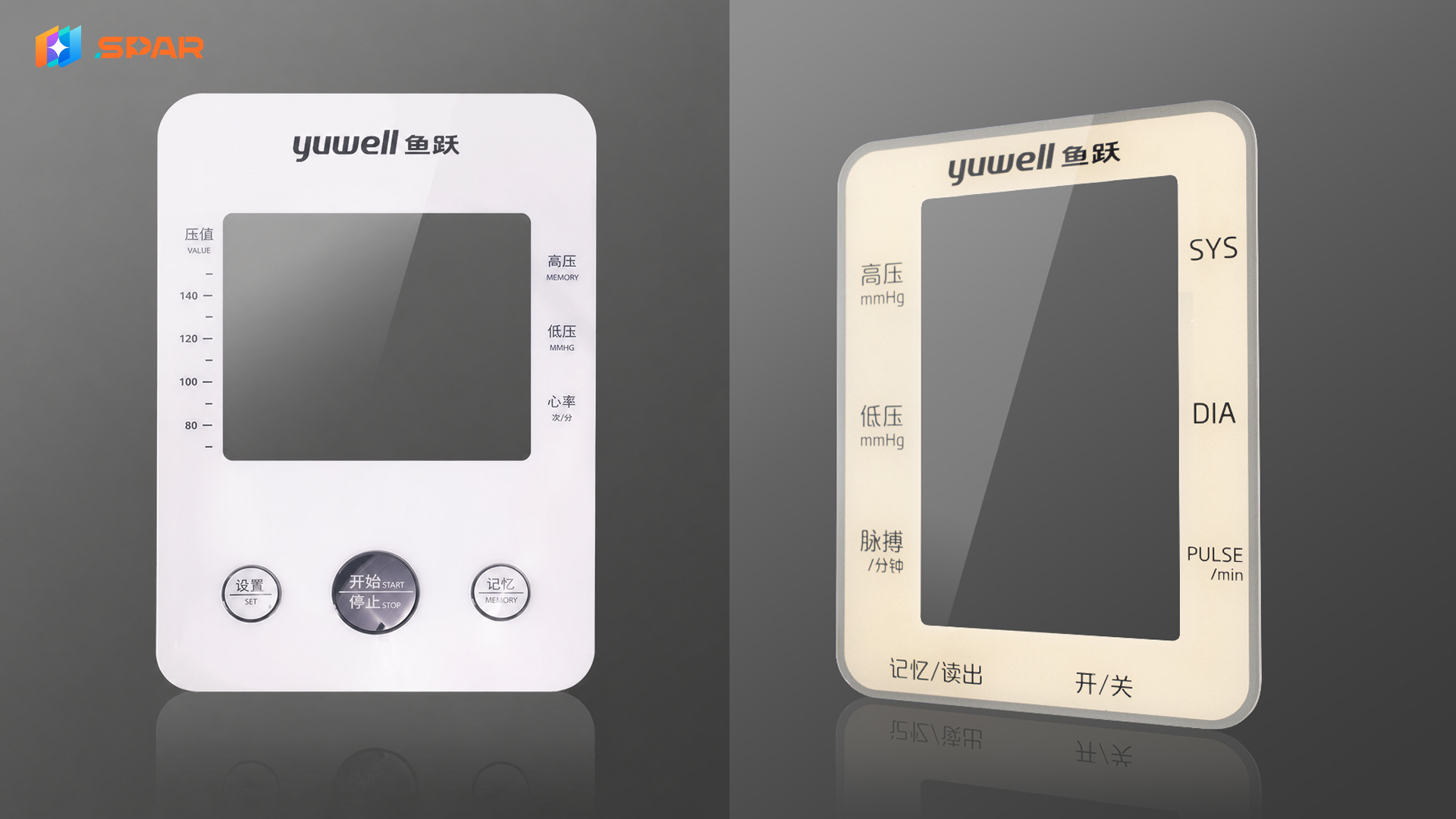

• Acrylic functional display panel:This component carries blood pressure readings, mode parameters, and device status information. Its light-transmission uniformity, printed overlay clarity, and long-term stability directly affect the accuracy and convenience of data reading.
• PET embossed button panel:This is the key interactive part for power on/off, mode switching, and measurement start functions. Button rebound feel, press life, and alignment accuracy directly affect the user operation experience and must support high-frequency, long-term home use.

2. Technical Challenges and Solutions: Medical Display Panels and PET Embossed Buttons

Before working with Spar Panel, Yuwell had encountered recurring quality problems in batch production from other suppliers. These issues were concentrated in two major product modules:

Acrylic Functional Display Panel Challenges

• Back-side printed characters were blurred, while the white background layer showed black spots and uneven color blocks.
• The display window had uneven light transmission and did not meet the readability requirements of medical devices.
• The screen-printed ink layer showed insufficient adhesion, with peeling and discoloration after long-term use.

PET Embossed Button Challenges

• After hot-press embossing on 188 mm ultra-thin PET, the material showed stretching deformation, local cracking, and uneven button height.
• After long-term pressing, rebound failure and collapse occurred, making the buttons unsuitable for high-frequency home operation.
• The embossed buttons and printed functional markings had large alignment deviations, causing the button area and printed legends to shift and increasing the risk of misoperation.
• After multi-process integration, the products also suffered from insufficient flatness, adhesive voids, and CNC cutting damage to the panel or button structure.

Yuwell needed Spar Panel to solve these industry pain points while completing the custom development and stable mass production of new acrylic functional display panels and PET embossed button overlays, matching its new blood pressure monitor development schedule and medical-grade quality control requirements.

After analysis, we selected 1.0 mm hard-coated acrylic and 0.188 mm ultra-thin PET as the main materials for the display panel and embossed button modules. Through back-side precision screen printing, hot-press embossing, and CNC precision cutting, we developed a repeatable mass-production solution for both product types.

2.1 Visual Performance and Long-Term Stability Control for Medical Display Panels

The functional display panel carries blood pressure readings, function parameters, and device status information. It requires multilayer back-side screen printing on acrylic or PET materials, including a solid-color background, gray functional characters, and a reserved square transparent display window.

Precision screen printing optimization: We selected high-quality environmentally friendly screen-printing inks and optimized film positive making, screen parameters, printing pressure, and curing parameters. This ensured sharp printed edges, clear and uniform characters, a solid-color background without black spots or uneven color blocks, and an ink-free display window with uniform light transmission.

Long-term stability verification: After printing, we performed cross-hatch adhesion testing, aging testing, and high/low temperature cycling tests to verify environmental durability. This helps ensure that the printed layer does not peel or discolor during long-term daily use, meeting the full-life-cycle requirements of medical devices.

2.2 Embossed Button Forming and Tactile Control for High-Frequency Home Use

The PET embossed buttons are key interactive components for power control, mode switching, and measurement start functions. The product required 2-3 functional embossed buttons with a height of approximately 0.8 mm formed on a 0.188 mm ultra-thin PET substrate.

For home medical devices, button stability and tactile consistency directly influence user operation and device reliability. The main technical challenges were forming stability on ultra-thin PET, rebound feel, and press durability.

Precision hot-press embossing optimization: We customized high-precision embossing molds and used a step-by-step hot-pressing process to disperse material stress. By precisely controlling temperature, pressure, and holding time, we reduced the risk of stretching deformation and local cracking in the ultra-thin PET substrate.

The emboss height was strictly controlled within 0.8 mm ± 0.15 mm, while the emboss curvature and rebound structure were optimized to ensure uniform button height, comfortable operation feel, and crisp rebound.

High-frequency durability verification: Through million-cycle press testing, the buttons maintained stable rebound without collapse or cracking, making them suitable for daily operation in home medical equipment. After first-article approval, batch production was launched with standardized in-process sampling to maintain tactile consistency across batches.

2.3 Precise Registration Control Across Multi-Process Integration

From multi-color screen printing to hot-press embossing and CNC cutting, each process requires strict positional control. Any deviation may affect both the appearance and operating function of the panel.

For this project, we established a unified cross-registration reference system across screen printing, embossing, and CNC cutting. Film positive making, display-window protection, and embossing molds all used the same positioning coordinates, with overall positioning deviation controlled within ±0.25 mm.

2.4 Adhesive Lamination and CNC Cutting Optimization for Dual-Module Structures

After CNC forming, the panel required adhesive lamination. The key difficulty was to fit the adhesive to the flat display-panel area while avoiding the embossed button zones, preventing bubbles, adhesive overflow, and voids. The finished components also needed to remain flat when attached to the blood pressure monitor surface without edge lifting.

We selected 3M medical-grade adhesive highly compatible with acrylic and PET substrates and customized lamination fixtures for the embossed structure. The lamination process was completed in a Class 10,000 cleanroom, with precise control of pressure and flatness to ensure no adhesive overflow around the display panel and embossed buttons, fully supporting final device assembly requirements.

3. Project Results

Through full-process optimization and closed-loop quality control, this project successfully met Yuwell Medical’s customization requirements and achieved long-term stable batch delivery. The key results are summarized below:

Cooperation and Delivery Results

Quality and Compliance Results

From process accuracy and operating reliability to batch production stability, this project verified the suitability of Spar Panel’s acrylic functional display panels and PET embossed button panels for home medical device applications. It also demonstrated our integrated capabilities in ultra-thin substrate processing, multi-process coordination, and medical-use quality control.

For home medical device panel projects, stable tactile performance, full-process precision control, and batch-to-batch consistency are fundamental to serving medical brand customers.

• Medical-use screen printing capability:Ensures sharp, clear characters and long-term stability that meet medical device readability requirements.
• Ultra-thin PET embossing capability:Solves common problems such as deformation, cracking, and rebound failure during ultra-thin PET forming.
• Full-process registration control:Aligns the display window, embossed buttons, and printed markings accurately to support safe device operation.
• Integrated multi-process production:Combines screen printing, hot-press embossing, adhesive lamination, and CNC cutting to support automated assembly.
• Medical-use closed-loop quality control:Ensures dimensional consistency and stable performance in large-volume production.

For Spar Panel, this project is not only a successful delivery case but also an important accumulation of experience in custom panel manufacturing for home medical devices. Through long-term cooperation with Yuwell Medical, we have built a standardized production and quality control system suitable for the medical device industry, laying a solid foundation for future functional panel projects in more medical equipment categories.

4. Product Effect Display

5. FAQs

Q1: How does the screen printing process for medical display panels ensure character clarity and long-term stability?

A: We use environmentally friendly screen-printing inks and optimize screen parameters to ensure sharp, clean printed edges, clear readability, and uniform light transmission in the display window. The printed layer is verified through cross-hatch adhesion testing, aging testing, and high/low temperature cycling, helping ensure no peeling, discoloration, or ink bleeding over long-term use.

Q2: How do you prevent deformation and cracking when forming embossed buttons on 0.188 mm ultra-thin PET?

A: We customize high-precision hot-press embossing molds and precisely control temperature, pressure, and holding time. A step-by-step hot-pressing process disperses material stress, reducing stretching deformation and local cracking. After million-cycle press testing, the buttons maintain stable rebound without collapse or cracking, making them suitable for high-frequency home medical operation.

Q3: How do you ensure precise alignment between the display window, embossed buttons, and printed markings?

A: We establish a unified cross-registration reference system across the display panel, embossed buttons, and screen printing processes. Film positive making, display-window protection, and embossing molds all use the same positioning coordinates. Combined with first-article approval and standardized hourly sampling, this ensures consistent alignment across each batch.

Q4: How does CNC cutting avoid damaging the printed layer and embossed button structure?

A: We use customized fixtures to protect the product, display window, and embossed button areas. Tool selection, toolpath, cutting depth, and machining parameters are optimized to complete contour and display-window cutting without damaging the printed layer or embossed button structure. Dimensional tolerance can be stably controlled within ±0.05 mm, supporting final device assembly.

Q5: What quality and compliance requirements are needed for medical device display panels and embossed button products?

A: We have established a closed-loop quality control system suitable for medical device applications, following first-article sign-off, batch inspection, and finished product inspection. The system covers display performance, button performance, dimensional accuracy, and reliability. Production follows the ISO 9001:2015 quality management system, and medical-use compliant materials can support product safety, long-term durability, and global market compliance requirements.

Q6: Do your products meet medical industry requirements and home medical device compliance needs?

A: Our panel and button products follow medical-use control standards from material selection and adhesive application to cleanroom production. We use acrylic and PET substrates and 3M specialty adhesives suitable for medical-use requirements, with low VOC and no harmful substance release under applicable conditions. Lamination is completed in a Class 10,000 cleanroom to reduce contamination risk. Related test reports can be provided to support customer certification processes.
