Acrylic (PMMA) and polycarbonate (PC) panels are widely used in home appliances, industrial control equipment, and medical devices where interface clarity, structural fit, and surface appearance all matter. After screen printing, UV printing, and adhesive lamination are completed, precision contour cutting becomes a key step in determining assembly fit, appearance consistency, and production yield.
For high-precision functional panels, assembly tolerances often need to stay within ±0.1 mm. If the tolerance goes out of spec, the panel may fail to fit correctly, gaps may become uneven, and batch rework or scrap costs can rise quickly.
Compared with injection molding, die cutting, and laser cutting, CNC cutting offers a more flexible option for medium-to-thick plastic panels and complex geometries. It does not require tooling, supports full-thickness sheet processing, and can deliver stable mass-production accuracy down to ±0.05 mm. For many precision electronic functional panel projects, CNC has become the preferred forming process.
In this article, we explain how CNC cutting works, when it is the right choice for acrylic and PC panels, what designers should consider, and how Spar Panel supports stable production for custom panel projects.

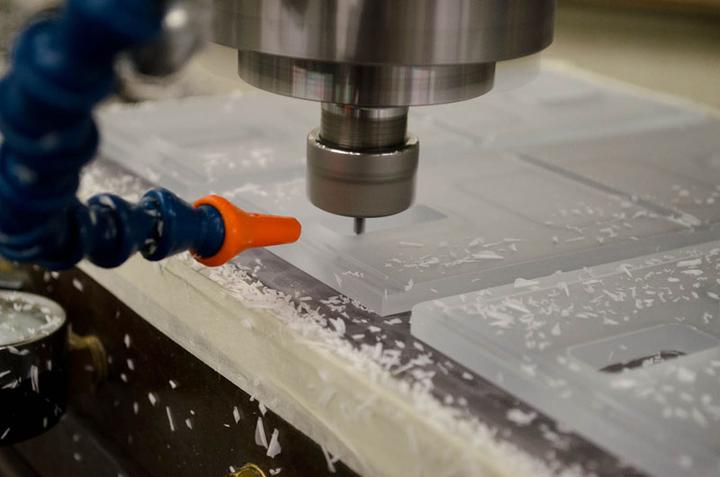

CNC (Computer Numerical Control) cutting is a precision cold-machining process that converts digital drawings into accurately machined plastic parts. Based on customer drawings in 2D vector formats such as PDF, DXF, and DWG, our engineers generate toolpaths through CAM software and convert them into machine-readable code.
The CNC system then drives the cutting tools across the X, Y, and Z axes according to the programmed toolpath. Unlike laser cutting, which removes material through heat, or die cutting, which relies on mechanical shearing, CNC milling can machine acrylic and PC panels into complex shapes and features with stable linear accuracy down to ±0.05 mm and clean edge quality.
That is why CNC is widely used for panel parts that require precise assembly, consistent appearance, and reliable repeatability in production.
To keep production stable and repeatable, we typically manage CNC panel machining through five core steps:
File Preparation and Toolpath Programming
After receiving the customer’s PDF, DXF, or DWG files, our engineering team reviews the geometry, dimensions, and tolerance requirements, then converts the drawings into accurate machining programs.
Material Loading and Precision Fixturing

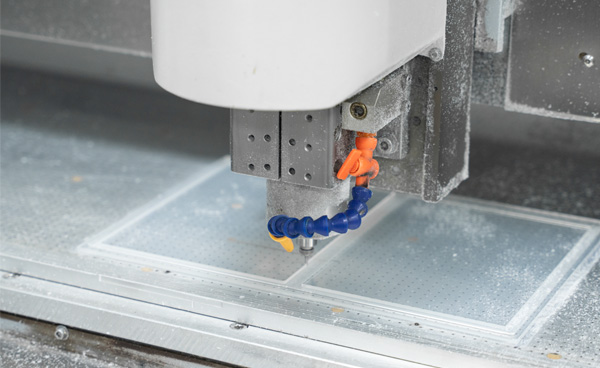

For different sheet materials such as acrylic and polycarbonate, we use vacuum adsorption or dedicated fixtures to hold the sheet flat and stable on the worktable. This helps reduce positional movement during machining and supports large-format panel processing up to 2500 × 580 mm.
Tool Selection
We select the cutting tool based on the material, feature geometry, and finish requirement. Diamond tools may be used for high-gloss edges, while tungsten carbide tools are often used for harder materials and general contour machining.
Automated Precision Machining
The machine then performs cutting, milling, drilling, and chamfering according to the programmed sequence. With controlled spindle speed and feed rate, CNC can support stable tolerances of ±0.05 mm, machine openings as small as 1.0 mm, and produce custom chamfers of 30°, 45°, or 60° in a single operation without secondary trimming.
Cleaning and Final Inspection
After machining, debris is removed from the panel surface and all machined features are inspected. We focus on dimensional accuracy, hole position consistency, and edge quality to confirm that the finished parts meet assembly and cosmetic requirements.
Common pitfalls to avoid in mass productionAfter machining, debris is removed from the panel surface and all machined features are inspected. We focus on dimensional accuracy, hole position consistency, and edge quality to confirm that the finished parts meet assembly and cosmetic requirements.
When a panel must align accurately with a metal housing, plastic housing, or PCB, CNC is often the best option. For projects that require assembly tolerances within ±0.1 mm, stable machining capability down to ±0.05 mm helps control fit and reduce visible gaps after assembly.
CNC is well suited to parts that include irregular outer profiles, dense hole patterns, special-shaped notches, or multiple functional openings. Because these features can be machined in a single setup, their positional relationship is easier to control than with split processes.
If the design requires a protective chamfer, a smoother hand feel, or a 2.5D edge transition, CNC can machine smooth chamfers or 2.5D edge transitions directly during cutting, reducing secondary finishing and helping achieve clean, appearance-ready edges.
When one part requires contour cutting, internal slotting, drilling, and chamfering, CNC can complete these operations in a single setup. This improves efficiency and helps maintain overall geometric integrity and dimensional consistency.
CNC is also especially valuable for materials and thickness ranges that are less suitable for other processes. Acrylic is relatively brittle and hard, so die cutting is generally not suitable, while laser cutting can cause edge yellowing. For PC panels thicker than 0.25 mm, die cutting may lack the required precision and can accelerate tool wear, while laser cutting may cause thermal melt marks or deformation. Because CNC is a cold process with no punching stress and no thermal damage, it is often the most reliable option for precision forming of acrylic and PC panels.
For acrylic, PC, PET, and similar materials, CNC cutting, laser cutting, and die cutting are the three most common options. In practice, customers usually focus on three questions: Is the tolerance sufficient? Will the edge quality meet appearance requirements? And is the material suitable for the process?
Edge expectation mismatch: some areas are judged by appearance, while others are judged by fit. Clarifying which zones are appearance-sensitive and which are fit-sensitive helps prevent surprises.
|
Comparison Item |
CNC Cutting |
Laser Cutting |
Die Cutting |
|
Accuracy |
High: typically ±0.05 to ±0.1 mm; suitable for precision assembly and multi-part alignment. |
Medium: around ±0.2 mm; fine features can drift due to spot size and thermal influence. |
Lower: often ±0.3 mm or more after tool wear; more suitable for simple shapes and very high volumes. |
|
Edge Quality |
CNC cutting can produce clean, smooth edges. For suitable acrylic light-guide or side-lighting parts, edge transmittance can exceed 90% and may not require additional polishing. |
Heat-affected edges may show melt marks, slight whitening, or haze. |
Mechanical shearing may leave burrs, indentation, or rough fracture zones. |
|
3D / Feature Machining |
Can combine milling, drilling, slotting, and chamfering in one setup. |
Mainly limited to 2D contour cutting. |
Mostly limited to 2D features and thinner sheet materials. |
|
Thermal Impact |
None. CNC is a cold-machining process. |
Yes. Heat can cause yellowing, brittleness, or local deformation. |
No thermal impact, but mechanical punching stress can still affect edge quality. |
|
Flexibility and Cost |
No tooling required; suitable for complex designs, revisions, and medium-volume orders. |
No tooling required; good for simple 2D parts and quick sample work. |
Requires tooling; better suited to very large-volume, simple parts once the die is finalized. |
|
Material Adaptability |
Suitable for acrylic, PC, PET, and medium-to-thick sheets across a wide thickness range. |
Material behavior depends on heat response and smoke generation. |
Limited by thickness, hardness, and die wear, especially on harder plastics. |
For related processing details, this section can later be linked to your process service page or internal process guide.
Spar Panel is a custom manufacturer in China with more than 20 CNC machines for acrylic and polycarbonate panel processing. We handle sheet thicknesses from 0.125 mm to 50 mm, with a maximum cutting size of 2500 × 580 mm and stable machining accuracy down to ±0.05 mm.
Logitech is a globally recognized brand in audio and smart peripherals, with strict requirements for assembly precision, visual consistency, production stability, and long-term product reliability. Spar Panel became an authorized supplier for Logitech more than 10 years ago and has supported its audio product line with CNC-machined acrylic control panels for many years.
This case refers to a control panel project we produced for Logitech in 2014. The panel was installed in the product’s main visual and operating area on the front housing. The process combined CNC precision machining on a black acrylic base with high-precision surface screen printing. The project needed to meet the requirements of automated assembly, brand appearance consistency, and premium product presentation at the same time.
The project included four major technical challenges:
To address these requirements, we developed a closed-loop production approach covering screen printing, CNC machining, appearance control, and production verification.
On the CNC side, we optimized tool selection, toolpaths, and reference positioning. For the CNC process, we optimized tool selection, toolpaths, and reference positioning. Different tungsten carbide cutters were used for internal cutouts and outer profiles to minimize the risk of chipping and burr formation. Through repeated simulation and trial runs, we adjusted the cutting path and used layered machining with stress dispersion to reduce deformation caused by multiple synchronized features. Using one consistent positioning reference throughout the process helped keep the final panel tolerance stably within ±0.06 mm.
For appearance control, we implemented full-process inspection from incoming material loading to final offline inspection. 5S standards were maintained throughout production, and the finished panel was checked for scratches, chips, contamination, and cosmetic defects. In parallel, process sampling, full inspection at key stages, and wide-temperature aging verification were used to confirm mass-production consistency and long-term reliability.
After multiple rounds of proofing and process optimization, the project achieved stable accuracy control for multi-opening machining and consistent cosmetic quality in production. The panel tolerance was ultimately controlled within ±0.05 mm in mass production, with stable yield performance supporting long-term batch delivery and supporting Logitech’s automated assembly rhythm and enabling stable long-term delivery.
Over years of cooperation, Spar Panel has continued to support their audio product line with customized CNC-machined panel solutions and has remained a qualified supplier for Logitech in China.
Avoid sharp internal corners. For internal groove corners, use fillets of at least R ≥ 0.5 mm, with R0.8 to R1.0 mm recommended in most cases. This is because rotating CNC tools have a physical radius limit; common finishing cutters are typically Φ1.0 to Φ2.0 mm and cannot create a true sharp inside corner.
Please provide vector files in PDF, DXF, or DWG format, and clearly mark key mating dimensions and tolerance requirements such as ±0.1 mm. Bitmap files are not suitable for direct toolpath generation, and missing tolerance notes can create acceptance ambiguity and increase communication risk.
Before proofing, confirm whether the part should be machined with protective film in place. Protective film can reduce scratch risk, but it may also affect clamping and positioning accuracy. If a later process has alignment requirements, the CNC stage should reserve a clear datum strategy to reduce cumulative error.
Before mass production, physical samples should be used to verify assembly clearance, surface appearance, and functional fit. First-article confirmation is one of the most reliable ways to lock process parameters and reduce batch risk.
Q1: What should be marked on drawings for CNC-cut panel parts?
A: Mark cosmetic surfaces, viewing direction, and critical assembly dimensions. If high-gloss edges, chamfers, or other cosmetic features are required, these should also be clearly noted on the drawing to standardize acceptance and reduce rework.
