How UV Transfer Printing Creates Special Textured Finishes on Plastic Graphic Overlays

In consumer electronics, smart home appliances, and automotive interiors, the appearance and tactile quality of acrylic (PMMA) and polycarbonate (PC) panels often play a direct role in how a product is perceived. As design expectations continue to rise, flat surface decoration methods such as standard screen printing, spray coating, and conventional hot stamping are often no longer enough to deliver finishes such as CD patterns, brushed textures, skin-feel effects, or iridescent gloss.

UV transfer printing has become a practical solution for these requirements because it can replicate microstructures with high precision, create a wide range of customized textures, and support efficient, environmentally conscious mass production in a single process flow. In this article, Spar Panel explains how UV transfer printing works, where it fits best, and how it is applied in custom plastic graphic overlay projects.

1. What Is UV Transfer Printing?

1.1 Core Principle

UV transfer printing is a surface decoration process that replicates microstructures from a master mold onto a substrate to create fine three-dimensional textures, metal-like gloss, and other decorative finishes. The process combines high-precision texture replication with UV curing technology to transfer the desired surface effect onto plastic panels with stable repeatability.

1.2 Step-by-Step Process Flow

• Master Mold Fabrication: A negative master mold is produced using technologies such as laser engraving or photolithography. Typical texture designs include carbon fiber weave, brushed metal, CD patterns, and diffraction gratings. The quality of this mold directly affects the fidelity of the final transferred texture.

• Transfer Adhesive Coating: A layer of uncured UV-curable transfer adhesive is applied to a transparent PET carrier film. The adhesive is designed to combine high transparency with controlled flow so it can fill very fine surface structures.

• Lamination and Transfer: The carrier film is placed over the substrate, such as PC, PET, or acrylic. A precision roller system presses the adhesive against the master mold so the liquid adhesive fills the microstructures completely.

• UV Curing: High-intensity ultraviolet light cures the adhesive within milliseconds. The adhesive changes from liquid to solid, locking in the mold texture and bonding firmly to the substrate surface.

• Release Film Peeling: Because the cured adhesive releases cleanly from the metal mold, the carrier film can be removed after curing. The replicated texture remains on the substrate surface and completes the transfer process.

After transfer, the textured surface typically contains fine lines 10–20 μm wide with spacing of 10–30 μm. When light strikes these microstructures, the transparent cured UV layer can produce specular reflection, diffuse reflection, diffraction, and refraction, which is why the process can create such a wide range of gloss and texture effects.

2. Why UV Transfer Printing Is Used for High-End Overlay Finishes

Compared with screen printing, UV inkjet printing, and standard hot stamping, UV transfer printing offers a more practical route for overlay designs that require texture depth, optical effect, and long-term durability.

3. Compatible Materials and Typical Applications

3.1 Compatible Substrates

The process is compatible with mainstream plastic and transparent sheet materials, especially acrylic (PMMA), polycarbonate (PC), and PET. It adheres well to flat and slightly curved surfaces, allowing the substrate to retain its original physical properties while gaining a more advanced surface finish.

3.2 Typical Application Scenarios

4. UV Transfer Printing in IMD Molding

UV transfer printing can also be combined with IMD (In-Mold Decoration) to produce durable plastic parts with complex three-dimensional textures. In practice, two process routes are commonly used:

5. UV Transfer Printing Solutions from Spar Panel

As a professional OEM custom manufacturer, Spar Panel has more than 20 years of experience in UV transfer printing for acrylic (PMMA) and polycarbonate (PC) graphic overlays. We provide end-to-end support from effect development to stable mass production.

5.1 Core Service Capabilities

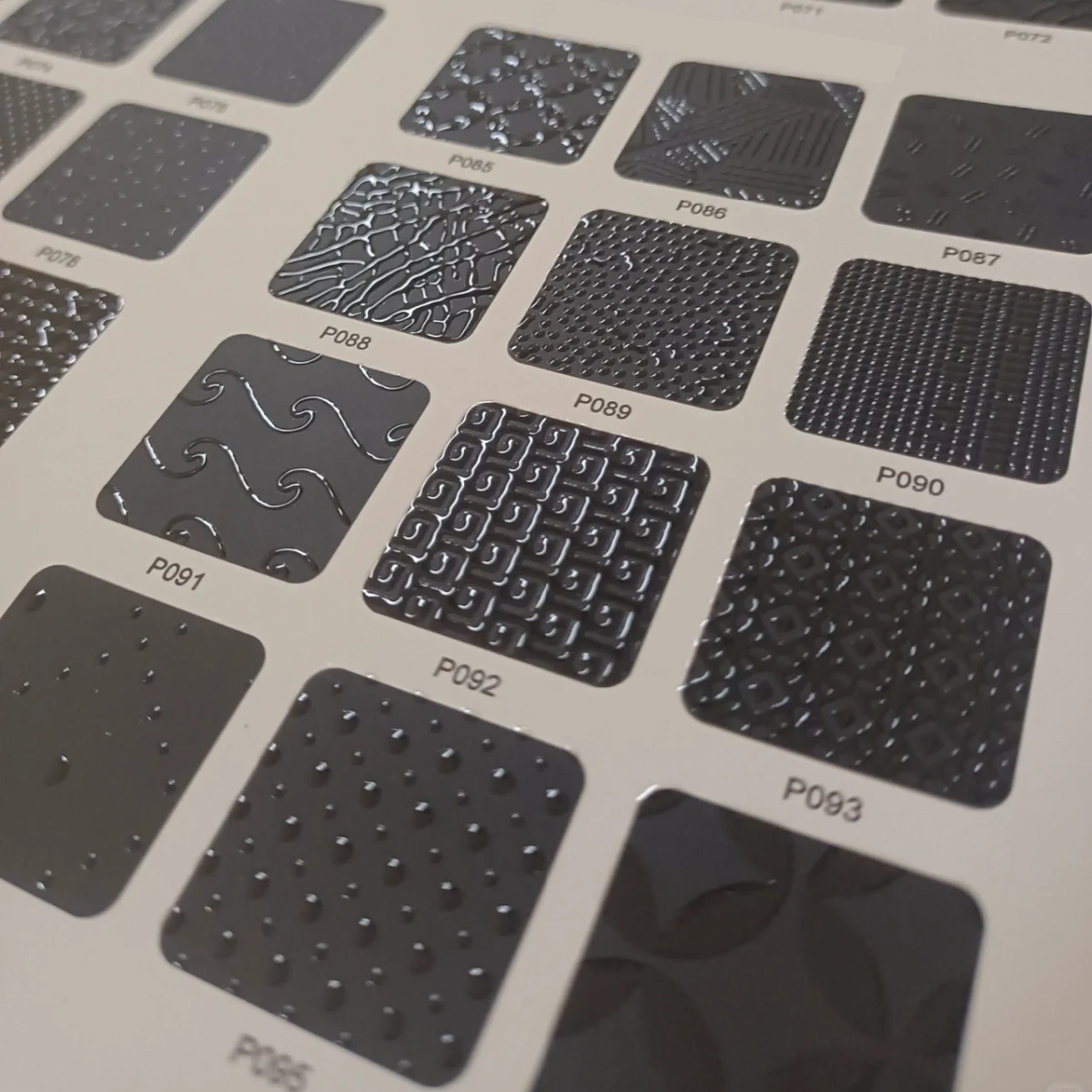

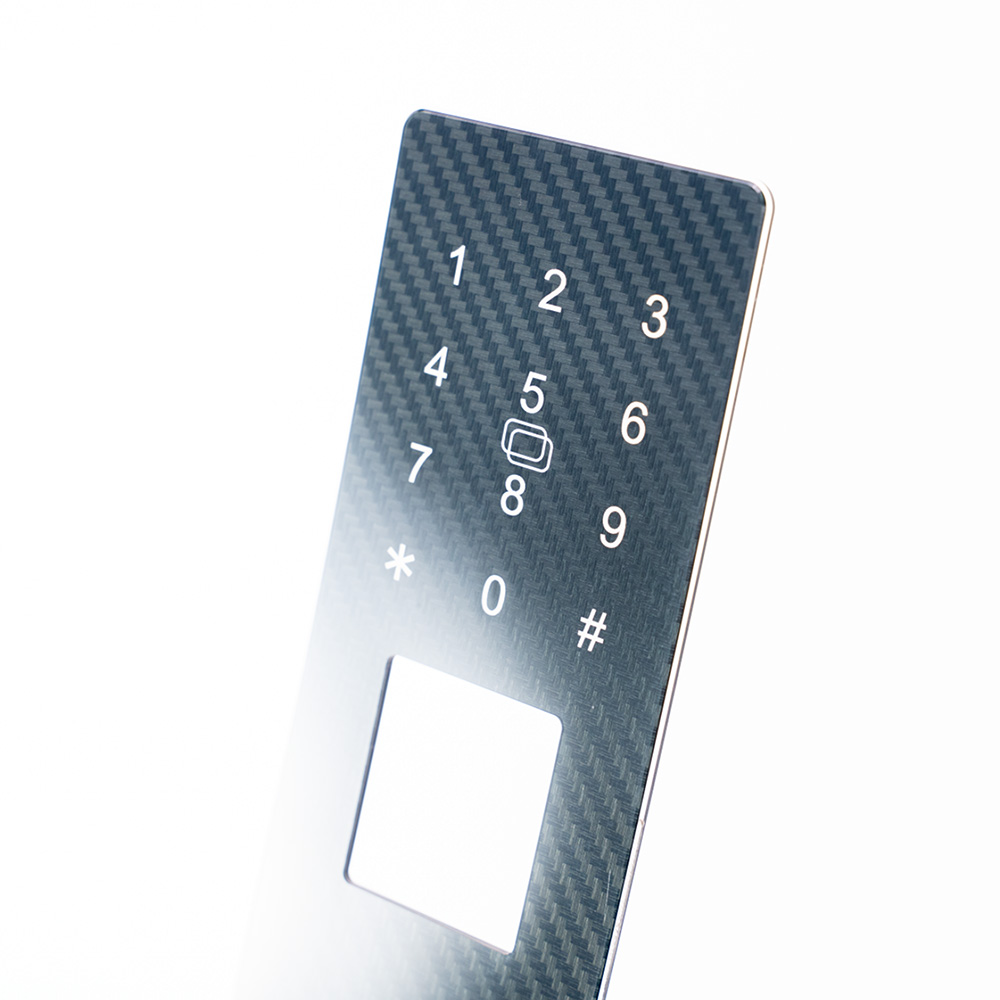

• Effect Development and Proofing: We maintain a texture master library covering finishes such as brushed, carbon fiber, grid, and radial patterns. After drawing confirmation, proofing can typically be completed within 3–5 working days so customers can confirm visual direction quickly.

• Precision Mold and Process Control: We use high-precision UV transfer printing molds with alignment accuracy of ±0.2 mm to support consistent texture replication and batch stability. Production is completed in a dust-free workshop to reduce dust-related defects.

• Full-Process Quality Control: With ISO 9001:2015 certification, we apply quality control from incoming material inspection through final packaging, including cross-hatch adhesion testing and abrasion resistance verification.

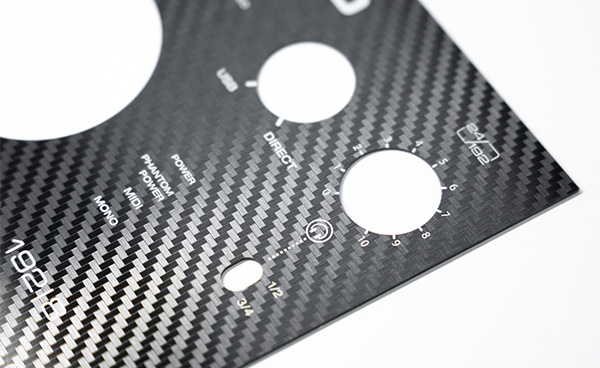

5.2 Case Study | M-Audio Audio Decoder Carbon Fiber Texture Control Panel

As a professional audio equipment brand in the United States, M-Audio has strict requirements for appearance quality, process precision, functional compatibility, and mass production stability. Spar Panel supplied control panels for its audio equipment line, including a flagship audio decoder MIDI device that required an integrated solution based on UV transfer printed carbon fiber texture on a 1.0 mm PC substrate, together with high-precision front and back screen printing and CNC precision forming.

This project addressed the customer’s need to achieve a premium carbon fiber appearance while controlling cost, delivering an effect comparable to native carbon fiber sheet at a significantly more economical price point.

Core Project Challenges

• High-end texture with cost control: The panel needed to reproduce a realistic three-dimensional carbon fiber weave with visual and tactile quality close to native carbon fiber sheet, while avoiding the high procurement and processing costs of the native material.

• Screen printing and backlight adaptation: The back side required a black base screen print with designated semi-transparent backlight areas, while the front side required white operation text and icons with clean edges, strong adhesion, and long-term stability.

• Multi-process compatibility: The project combined UV transfer printing, front and back screen printing, and CNC precision cutting. All processes had to share a unified reference system without damaging the transferred texture or the printed layers.

• Precision forming and assembly: Outer contour cutting and center functional hole machining had to be completed without burrs or chips, and overall dimensional tolerances had to support accurate assembly with the final device.

Spar Panel Solution

• Customized UV transfer process: We selected a 1.0 mm high-transparency PC panel and developed a dedicated transfer mold for the carbon fiber weave. By optimizing adhesive layer thickness, UV curing parameters, lamination temperature, and pressure, we reproduced the 3D weave texture, matte effect, and visual depth of native carbon fiber sheet, reaching 99% similarity while significantly reducing material and processing cost.

• Layered screen printing optimization: For the backlight function, we first printed a special light-transmitting ink in the designated backlight areas and then overprinted a black light-blocking layer to prevent light leakage and ensure a clear, even backlight effect. On the front side, we used a high-adhesion industrial white ink compatible with the transferred texture so text and icons remained sharp and stable over time.

• High-precision CNC forming: We used a dedicated fine-tooth tungsten steel milling cutter and optimized toolpaths and layered cutting parameters to avoid burrs and edge chipping on the PC substrate. A special fixture protected the transferred texture and screen printed content during machining. Final dimensional tolerances across the panel were controlled within ±0.05 mm.

Project Results

Using this integrated UV transfer printing solution, we resolved the trade-off between high-fidelity carbon fiber texture and cost control. The finished texture reached 99% similarity to native carbon fiber sheet while reducing panel BOM cost versus the native material solution.

All process indicators met customer requirements, and the mass production yield remained stably above 98.9%, supporting long-term batch delivery.

The finished product passed appearance, performance, and reliability audits by M-Audio’s US headquarters R&D and quality control teams, further strengthening Spar Panel’s role as a long-term qualified supplier for the brand’s professional audio control panel category and supporting continued customized panel solutions for its product line.

6. Design Guide: How to Optimize a UV Transfer Printing Project

6.1 Texture Design

When developing a new texture, the spacing between texture lines should be kept above 0.01 mm to help maintain clear structure replication in mass production. New textures should always be confirmed by physical proofing, since their real visual effect cannot be judged accurately on screen alone. In addition, customers should allow extra mold development time, as proofing for new textures is typically 3–7 days longer than proofing based on existing texture templates.

6.2 File and Communication Requirements

Please provide high-definition vector drawings with closed, gap-free lines in formats such as PDF or CDR. For more complex effect requirements, early communication with our engineering team is strongly recommended. Texture areas, alignment references, and tolerance requirements should be marked clearly on the drawings to reduce positioning errors during production.

6.3 Process Selection

We recommend confirming the process route early in the project. Surface UV transfer printing is suitable for fast and cost-effective proofing, while IMD in-mold transfer printing is better for parts that require more durable encapsulated texture protection. If you are not sure which route fits your project, send us the drawings and we can review the feasibility for you.

7. FAQs

Q1: In what scenarios should UV Transfer Printing be the first choice?

A: UV transfer printing is a strong option when your project requires three-dimensional tactile texture, premium visual finish, or optical effects that standard screen printing or spray coating cannot achieve. It is especially useful for fast proofing, design revisions with short lead times, premium customized versions, and products that need exclusive texture effects in selected areas.

Q2: Which substrates and surface conditions are best suited for UV Transfer Printing?

A: The process is best suited to rigid, non-porous, and relatively flat substrates such as PMMA, PC, and PET. These materials usually provide the most stable transfer boundaries and adhesion results.

Q3: Can UV Transfer Printing be combined with color printing?

A: Yes. UV transfer printing can be combined with UV color printing, screen printing, electroplating, and other processes. In practice, we often build the base texture first and then add color, gloss, or metallic effects on top of it.

Q4: What is the minimum texture precision achievable with UV Transfer Printing?

A: Spar Panel’s UV transfer printing process can achieve a minimum texture line width of 10 μm. Higher-precision photolithography-based solutions can be used when even finer replication is required.

8. Contact Us

If you have customized production needs for UV transfer printed textures on acrylic or polycarbonate graphic overlays, please feel free to contact us and submit your design drawings. We will provide a one-to-one process feasibility review and detailed quotation service.
