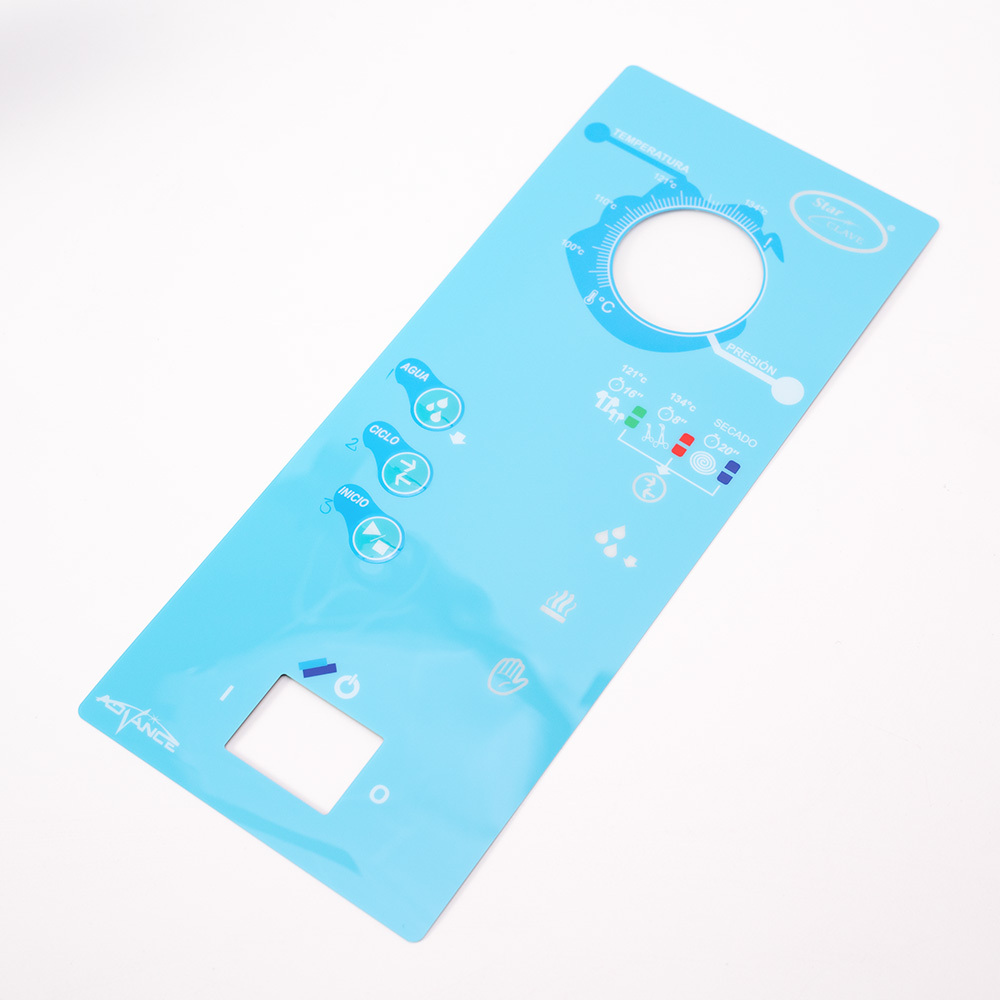

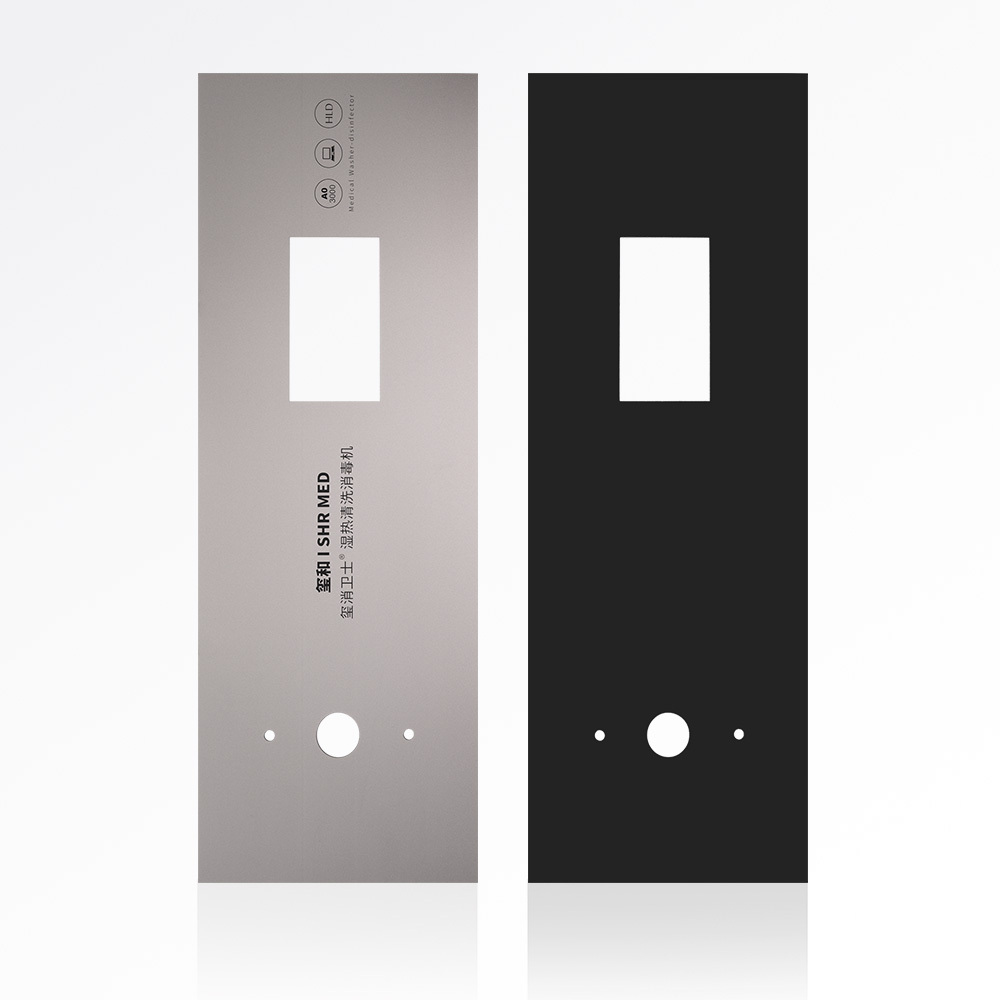

Custom Acrylic Display Panel for Medical Devices

No.45
Spar Panel produces custom acrylic display panels for medical and health devices. These panels can include display windows, printed graphics, precise openings, and customized surface finishes for device front panels.
Minimum Order Quantity
500 pieces(Please consult for specific details)
Lead Time
7-14 working days
Sample Lead Time
3-5 working days upon drawing confirmation
Available Material:
Acrylic(PMMA)
Standard thickness:
Acrylic(PMMA)0.175—6.0mm (matt, anti-glare, anti scratch, anti-UV)
  • Custom Acrylic Display Panel for Medical Devices
  • Custom Acrylic Display Panel for Medical Devices

Description

Item Description Technical capabilities
01 Max printing size 1300x700 mm
02 Max cut size 2500x1000mm
03 Color As requested
04 Double side adhesive  3M93010, 3M93020, 3M9080, VHB4920,etc.
05 Operating temperature PC: -40°C- 90°C PMMA: -40°C- 80°C
06 Finish Anti-glare surface, Anti-fog surface, Anti-fingerprint surface, Gloosy surface, Frosted surface
07 Printing Screen printing / Digital Printing
08 Logistics transportation  DHL, TNT, Fedex, UPS, SF Express etc.
