Graphic overlays form the visible interface on equipment, control panels, and electronic devices. They organize operating information, define control areas, and bring displays, buttons, indicators, and branding into one coherent front-panel design.
For manufacturers, an overlay must do more than carry printed graphics. Its artwork, windows, openings, and surface structure need to match the equipment housing and the components beneath it. This guide explains the common materials, structural options, manufacturing considerations, and applications of custom graphic overlays.

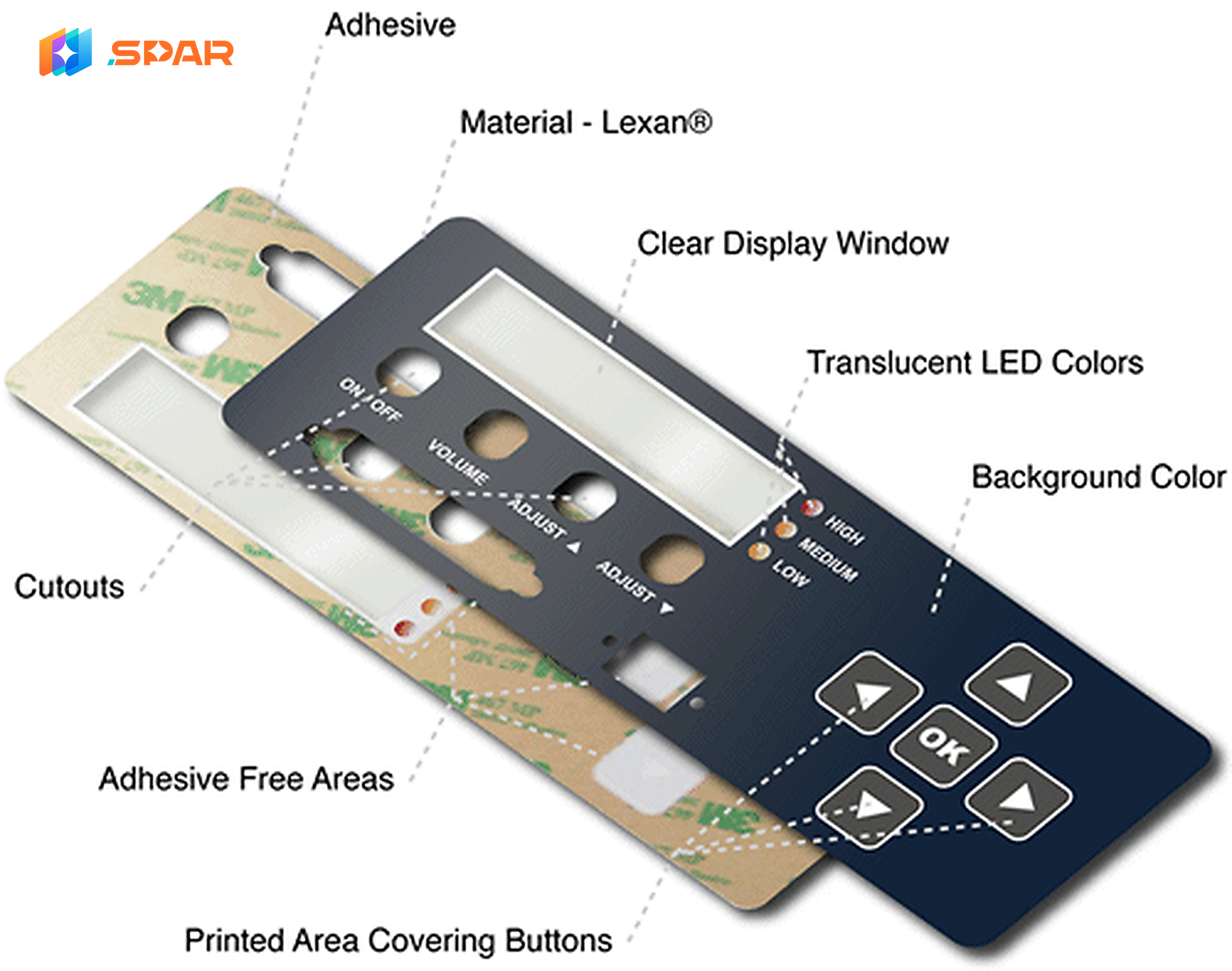

A graphic overlay is a custom-printed layer placed on the outer surface of equipment, control panels, and electronic devices. It forms the visible part of the interface that users read and touch during operation.
Printed text, icons, colors, and symbols identify the functions of the product. The same surface may also frame a display, mark button positions, separate control zones, or carry the product logo and model information.
Behind the printed layer, the equipment may contain a screen, indicator lights, mechanical buttons, sensors, or other control components. Accurate alignment allows the artwork and physical structure to work together as one interface.
For manufacturers, a graphic overlay is produced according to the product drawing rather than selected as a standard part. Its size, shape, artwork, openings, and interface layout must match the equipment housing and the components beneath it.
A well-planned overlay gives users a clear path through the controls while helping the finished product maintain a consistent visual appearance.
At Spar Panel, acrylic is the most widely used material, followed by polycarbonate and PET. These materials differ mainly in rigidity, optical appearance, flexibility, and processing characteristics.
The following table summarizes their general properties and common roles in Spar Panel projects.
Quick Comparison of Acrylic, Polycarbonate, and PET
|
Material |
Structure |
Main Characteristics |
Common Roles in Spar Panel Projects |
|
Rigid plastic sheet |
High optical clarity, smooth appearance, good rigidity, and suitable for precision machining and polishing |
Front panels, display panels, control panels, decorative panels, display windows, and lens covers |
|
|
Thin film or sheet |
Transparent, tough, flexible, printable, and available with different surface finishes |
Graphic overlays, display windows, equipment labels, and embossed control areas |
|
|
Thin and flexible film |
Good dimensional stability, mechanical strength, flexibility, and suitability for printing and converting |
Functional overlays, labels, stickers, and interfaces designed for repeated handling |
These descriptions summarize the general characteristics of each material. Actual performance depends on the selected grade, thickness, surface treatment, printing system, product structure, and application conditions.

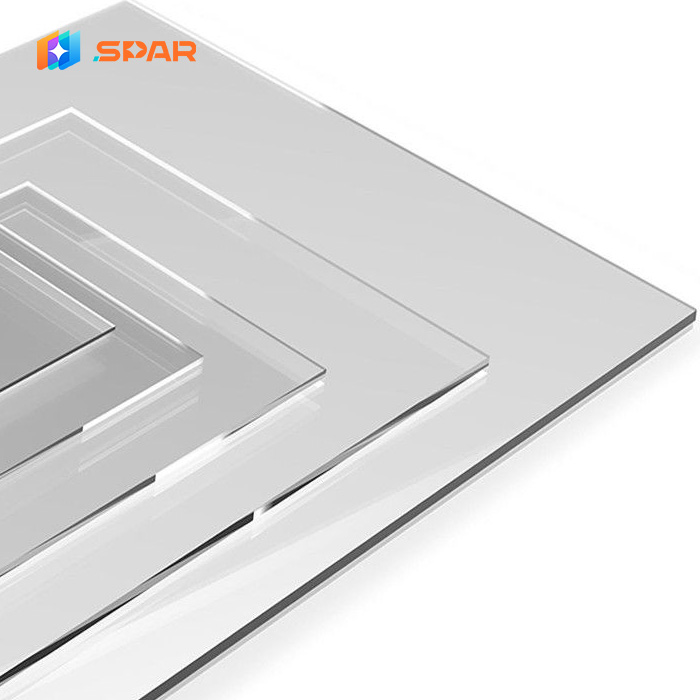

Acrylic is the most widely used material in Spar Panel’s custom panel production. Its rigid structure, optical clarity, and smooth surface make it suitable for front panels, display components, control panels, and decorative parts.
Transparent, tinted, frosted, and printed areas can be combined within the same design. Acrylic also supports precision cutting, drilling, milling, and polishing, which allows it to serve both visual and structural roles.
PMMA is a transparent thermoplastic commonly supplied in sheet form. In custom panel projects, it can be used for display panels, windows, lens covers, and decorative surfaces.

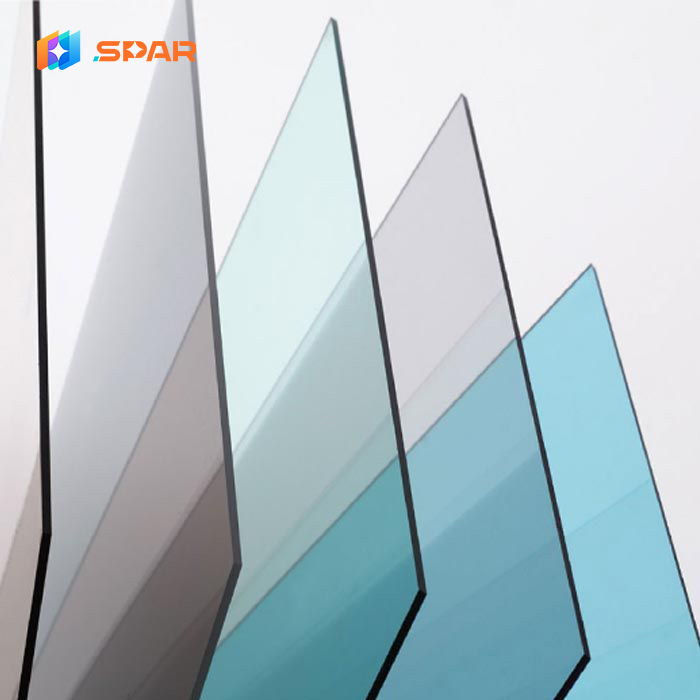

Polycarbonate combines transparency with toughness and flexibility. It is commonly used for printed overlays, display windows, control markings, labels, and emboss button areas.
A range of glossy, matte, anti-glare, and textured surfaces can support different equipment-interface designs. Printed graphics may also be placed behind the transparent film, depending on the panel structure.
Polycarbonate films can provide transparency, toughness, flexibility, and printability for displays, control panels, nameplates, and other graphic applications. Actual performance depends on the material grade, thickness, surface finish, and processing method.

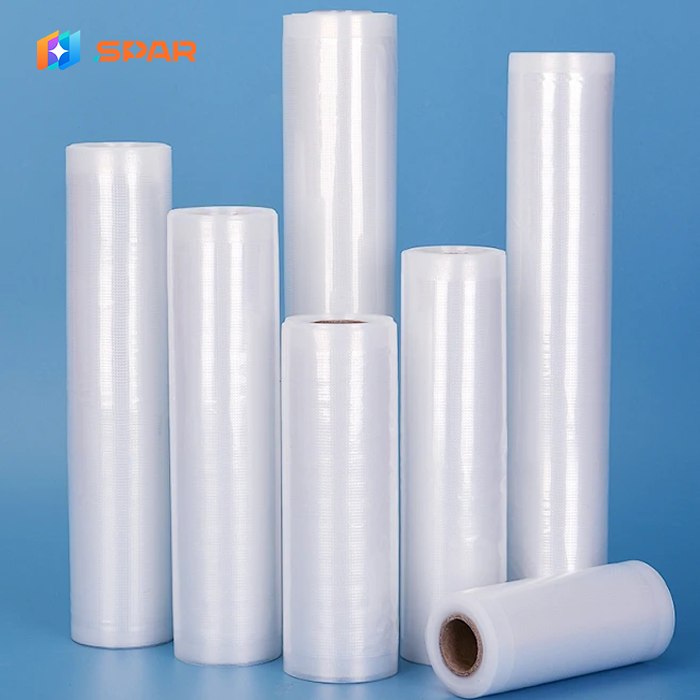

PET is usually supplied as a thin and flexible film. Its dimensional stability and mechanical strength make it suitable for functional overlays, labels, stickers, and interfaces that experience regular handling.
Depending on the selected film and surface treatment, PET can support printing, converting, adhesive lamination, display windows, and formed control areas.
PET films used for printing and converting can provide dimensional stability, strength, flexibility, and clear visual performance. Chemical resistance and other properties depend on the selected material grade and application conditions.
Graphic overlays are usually defined by their structure and the way they interact with the equipment beneath them. A single panel may combine printed graphics, display windows, raised controls, and precision openings rather than belonging to only one category.

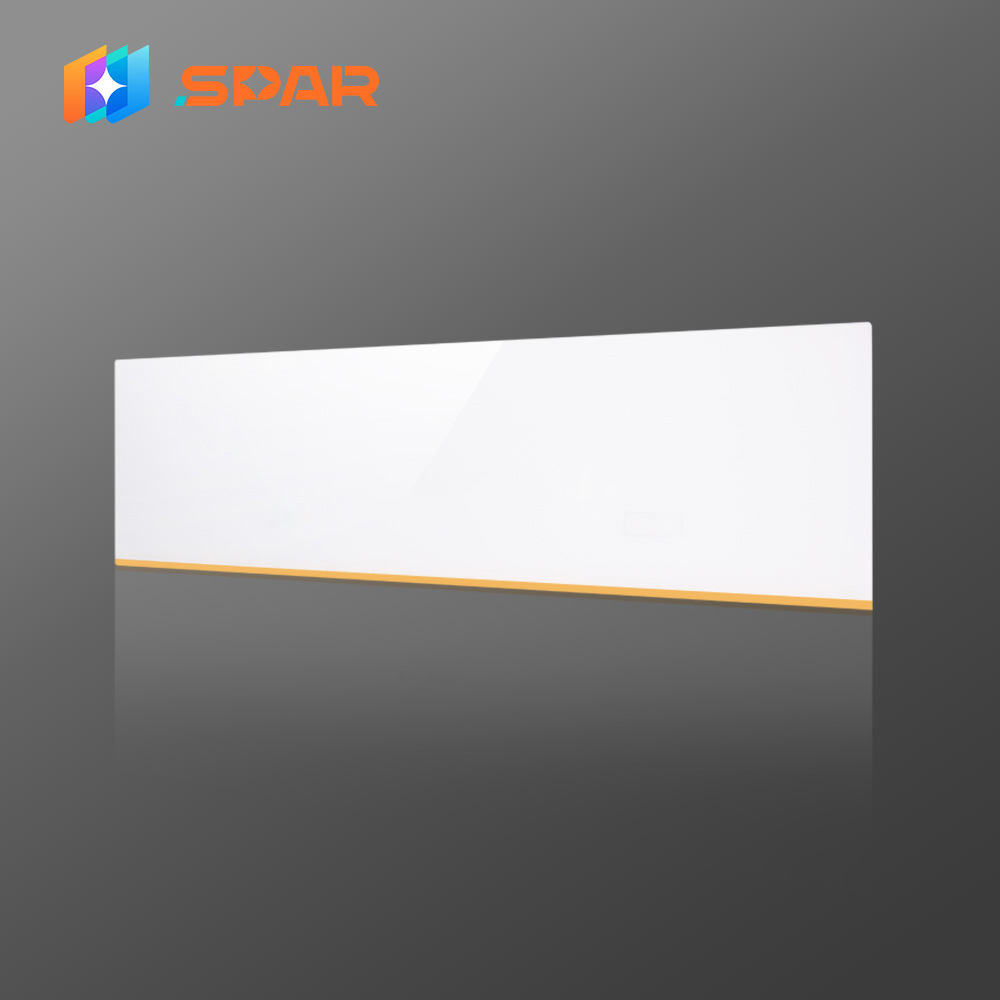

Flat overlays present text, icons, operating instructions, logos, and decorative graphics on a smooth surface. They are commonly used when the interface mainly needs clear visual information without raised control areas.
The printed layout can separate different functional zones and keep the control area consistent with the equipment housing. Depending on the product design, the panel may be made from acrylic, polycarbonate, or PET.

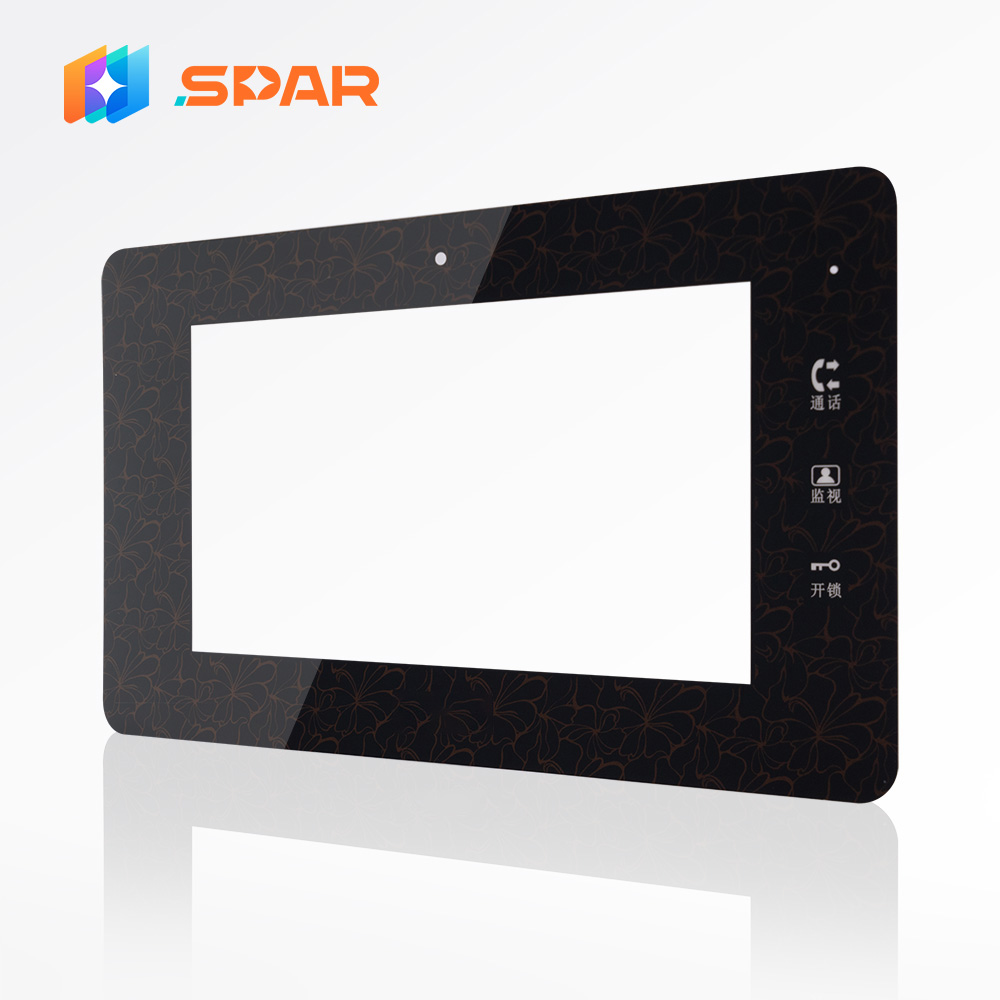

Display windows allow information from an LED, LCD, meter, or indicator light to remain visible through the panel.
A clear window shows the display directly, while tinted or concealed areas can help the screen blend into the surrounding surface. When backlighting is involved, the printed layers must control both light transmission and unwanted light leakage.
Window position, color, and transparency should be reviewed together with the display module and housing rather than selected separately.

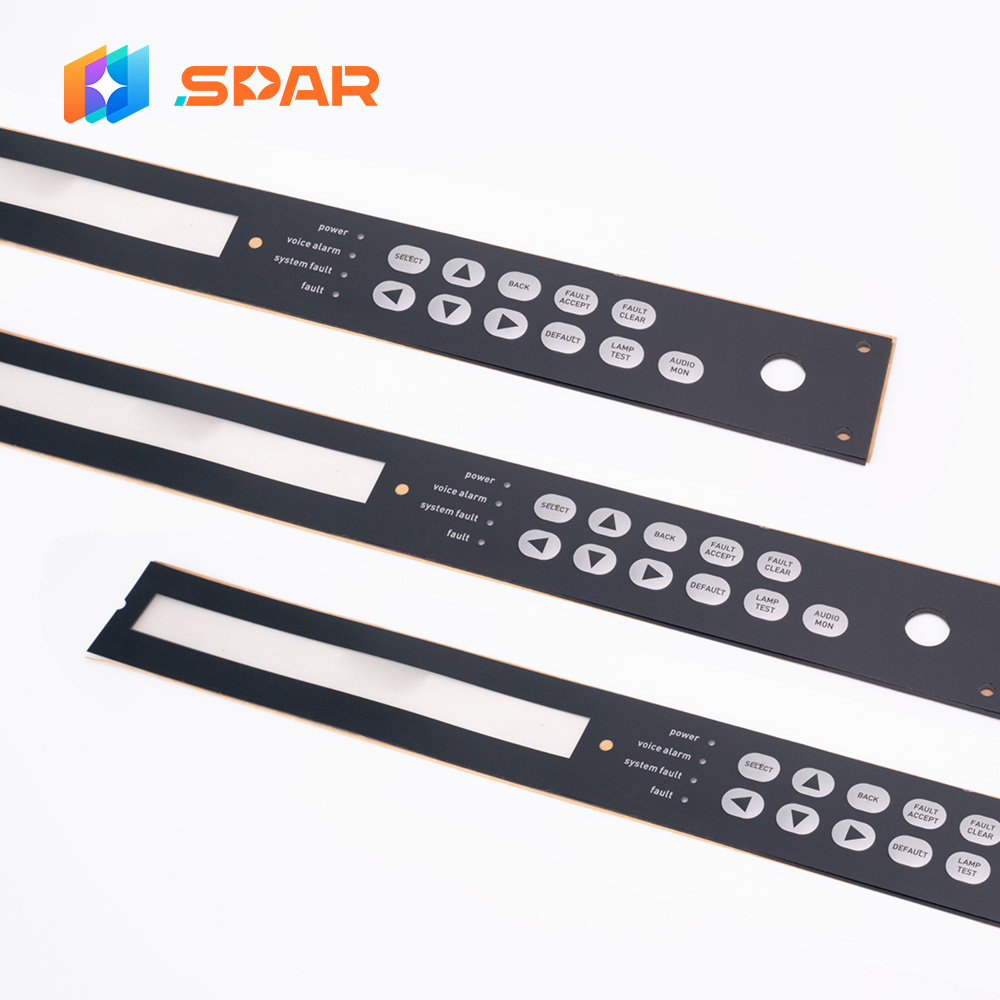

Raised areas guide users toward buttons, symbols, or selected control zones. The embossing adds a tactile reference while keeping the printed interface visually organized.
Each raised shape must align with the button or mechanism beneath it. An Emboss Overlay identifies the control area, but the electrical or mechanical function still comes from the component below.

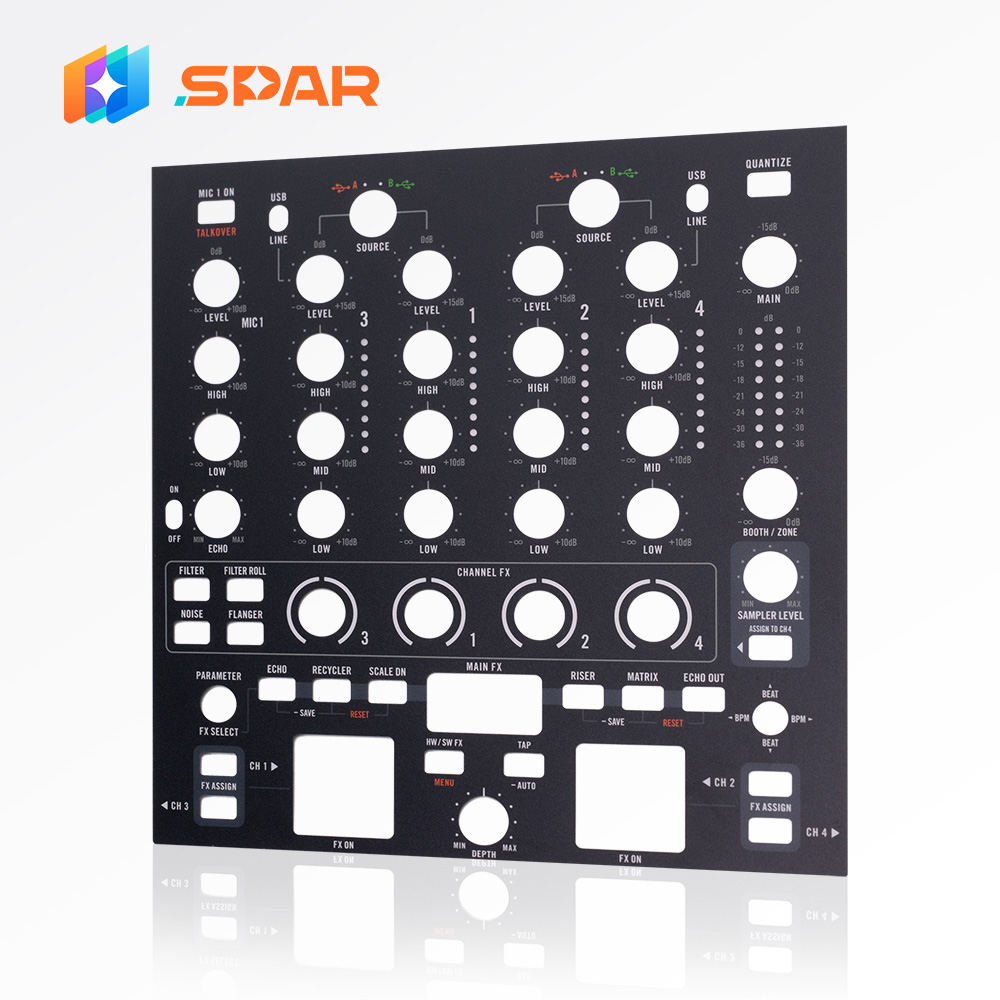

Some interfaces need openings for buttons, knobs, sensors, indicator lights, connectors, or other equipment parts.
Accurate cutting allows the printed graphics to align with these physical components. The width around an opening also affects appearance, strength, and the available bonding area, so artwork and structural drawings should be reviewed together.

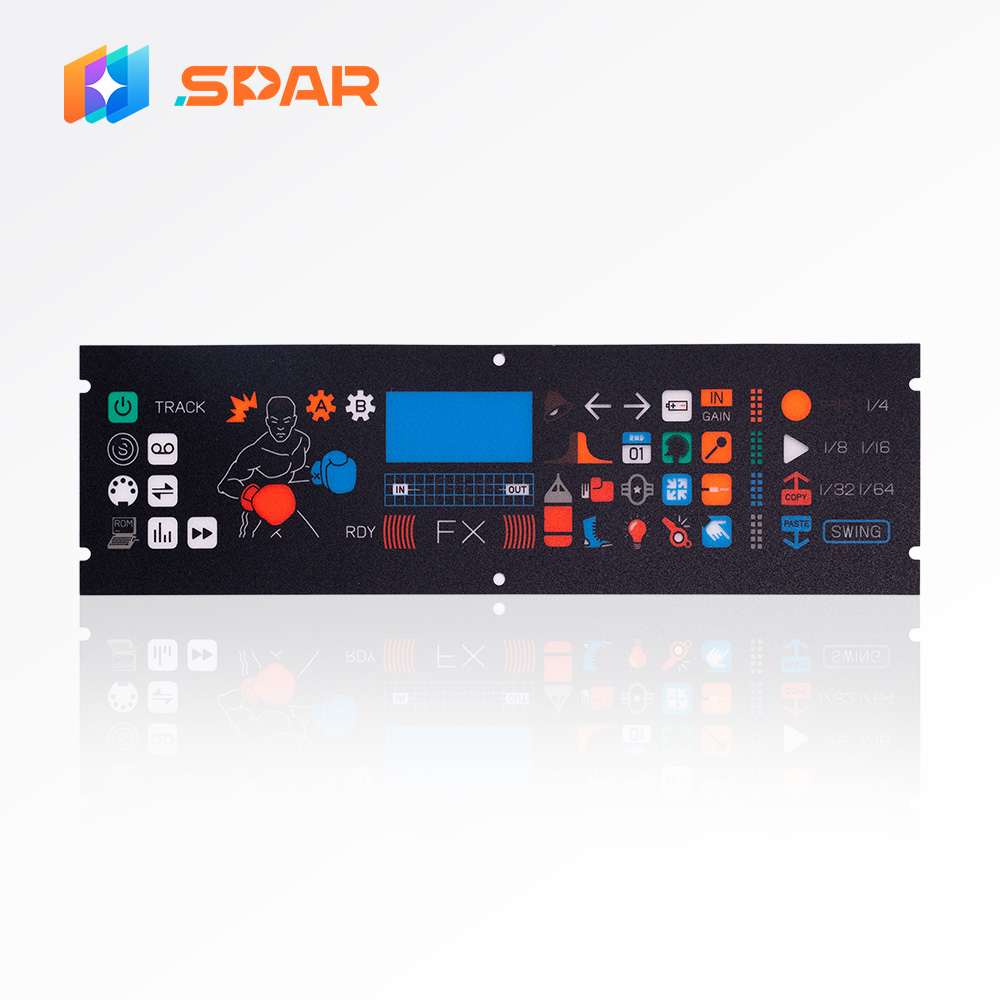

Many custom overlays combine several structures in one panel. A single design may include a display window, embossed controls, printed instructions, decorative areas, and openings for physical components.
This combined approach allows the interface to connect information, operation, and product appearance within one custom part.
The final performance of a graphic overlay does not come from the base material alone. Acrylic, polycarbonate, and PET provide the main structure, while inks, surface treatments, adhesives, and other functional layers influence appearance, touch, light transmission, and performance during use.
A suitable material combination allows the panel to match both the visual design and the working conditions of the equipment.
Material clarity and surface quality directly affect how printed graphics appear.
Acrylic provides a smooth and clear surface that works well for display areas, printed decoration, and transparent or tinted windows. Polycarbonate and PET also support detailed text, symbols, colors, and control markings, especially when graphics are printed on the reverse side of a transparent sheet or film.
Reverse printing places the graphics behind the outer surface. This structure reduces direct contact with fingers, cleaning cloths, and routine handling while keeping the information visible from the front.
Color accuracy and opacity also depend on the printing process, ink system, background color, and number of printed layers.
Different materials and surface treatments can create glossy, matte, frosted, or textured finishes.

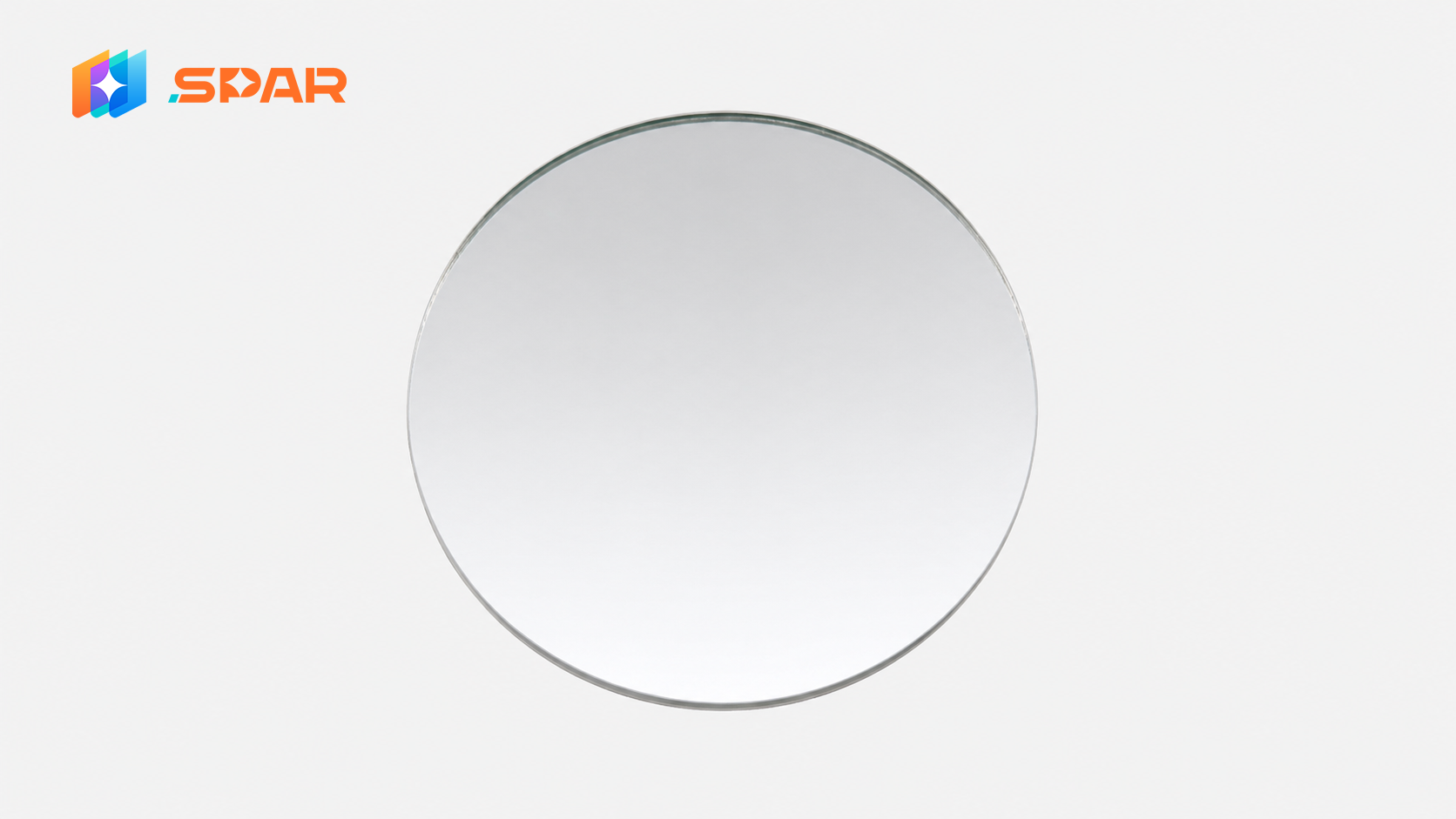

A glossy surface produces a bright and smooth appearance, making it suitable for display windows, decorative areas, and products that require a polished visual style.
Matte and anti-glare surfaces reduce strong reflections around screens and operating information. Textured finishes add a distinct hand feel and may make fingerprints or minor handling marks less noticeable during regular use.
Surface effects may come from the material itself, printed coatings, or additional processing. Selection should follow the appearance of the equipment housing rather than treating the panel as a separate component.
Transparent and translucent materials allow graphic overlays to work with LED displays, LCD screens, indicator lights, and backlit symbols.

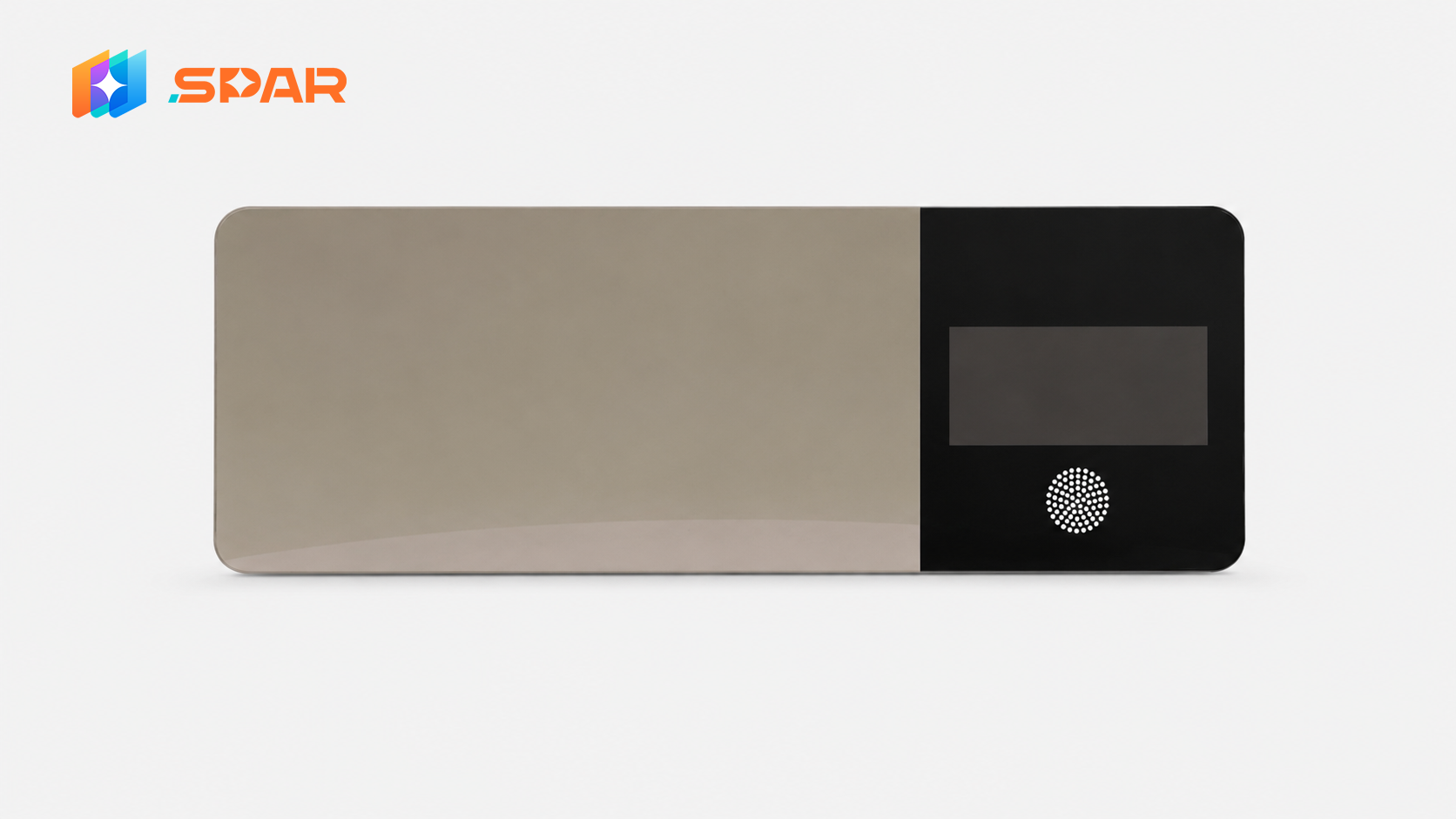

Clear areas show the display directly. Tinted windows can help the screen blend into the surrounding panel, while translucent printing controls how much light passes through selected icons or symbols. Filter windows can also be designed to control the transmission of selected light ranges according to the display, indicator, or sensing requirements.
Hidden or dead-front effects require a careful balance between light transmission and background opacity. When the display is off, the window should remain visually integrated with the panel. Once illuminated, the information still needs to be clear at the intended viewing distance.
The final result depends on the material color, thickness, ink coverage, light source, and distance between the overlay and the display module.
The selected material and printing structure can help protect the visible graphics during everyday operation.
Reverse-printed graphics are less exposed to direct wear because the substrate remains between the printed layer and the user. Surface coatings may also improve resistance to scratches, fingerprints, or routine cleaning under defined conditions.
Cleaning performance should be evaluated as part of the complete structure. The substrate, ink, coating, cleaning agent, contact time, and cleaning method all influence the result.
For equipment that requires frequent wiping, manufacturers should provide information about the expected cleaning conditions before material and process selection.
Adhesive backing connects the graphic overlay to the equipment housing. Its performance depends on both the adhesive system and the surface being bonded.
Smooth plastic, painted metal, textured housings, and curved surfaces create different bonding conditions. Panel size, opening position, edge width, and housing flatness also affect the available contact area.
A suitable adhesive supports stable assembly, but bonding performance cannot be judged from adhesive type alone. Surface preparation, installation pressure, and actual use conditions remain equally important.
Different materials and processes can provide different surface and interface effects.
|
Material or Process |
Feature It Can Provide |
|
Glossy substrate or clear varnish |
Bright and clean surface appearance |
|
Matte substrate or matte coating |
Lower reflection and softer visual appearance |
|
Textured substrate |
Distinctive hand feel and surface texture |
|
Scratch-resistant material or treatment |
Improved surface durability |
|
Chemical-resistant material |
Better resistance under defined cleaning or contact conditions |
|
Double-sided adhesive |
Bonding matched to the installation surface |
|
Transparent window material |
Clear display or indicator areas |
|
Translucent ink |
Backlit icons, symbols, or light-transmission areas |
|
Opaque ink |
Light control and cleaner background appearance |
|
UV-resistant material or ink |
Improved suitability for outdoor or bright environments |
|
Hot stamping |
Metallic decorative appearance |
|
UV texture transfer |
Brushed, CD-pattern, carbon-fiber, optical, or other decorative textures |
Common production processes for graphic overlays include Screen Printing, UV Printing, Die Cutting, adhesive laminating, and embossing selected control areas.
These processes allow the substrate, printed graphics, adhesive structure, and functional areas to work together in the completed component.
For custom projects, the material and process structure should match the drawing, equipment housing, use environment, and visual requirements.
Graphic overlays are used across many types of equipment to identify controls, present operating information, frame displays, and organize the visible interface. Their exact structure depends on the product housing, control components, operating conditions, and the way users interact with the equipment.
Home appliances use graphic overlays to present operating modes, temperature settings, timers, warning symbols, and product information.
They can be found on refrigerators, washing machines, dishwashers, air conditioners, kitchen appliances, and coffee machines. Depending on the interface design, the overlay may include printed icons, display windows, button markings, or embossed control areas.
Professional audio equipment often contains multiple knobs, switches, channels, displays, and indicator lights.
Graphic overlays help identify these control positions and organize printed scales, channel information, operating symbols, and branding. Accurate alignment is especially important on mixers, amplifiers, audio processors, and other equipment with closely arranged controls.
Industrial equipment uses graphic overlays to make operating information and control areas easier to identify.
Machine control panels, testing instruments, automation equipment, and industrial terminals may include status indicators, warning information, display windows, button areas, and openings for switches or connectors. The overlay must match the equipment drawing and the physical components beneath it.
Medical and healthcare devices require interfaces with clear operating information and recognizable control zones.
Graphic overlays can mark buttons, display areas, operating modes, warning symbols, and equipment information on monitors, diagnostic instruments, treatment equipment, and other healthcare-related devices. Materials and surface structures should be reviewed according to the actual cleaning and operating conditions.
Graphic overlays can also be used on automotive electronics and vehicle-related control equipment.
Typical applications include control modules, charging equipment, display interfaces, button panels, and identification areas. Window transparency, printed symbols, opening positions, and surface appearance must coordinate with the surrounding components and product housing.
Security systems often combine key areas, displays, sensors, indicators, and operating instructions within a compact interface.
Graphic overlays are used on access-control devices, alarm panels, monitoring equipment, intercom systems, and security terminals. Printed zones help users distinguish between different functions, while transparent windows keep displays and indicator lights visible.
Printers, scanners, teaching devices, information terminals, and other shared equipment use graphic overlays to simplify operation.
Symbols, button labels, display windows, and connection markings help users understand the interface more quickly. Products used by many people may also require materials and printing structures suited to repeated handling and regular cleaning.
Outdoor control systems and exposed electronic equipment may use graphic overlays for control identification, display visibility, warnings, and product information.
Applications include outdoor control boxes, charging equipment, communication devices, and other electronic interfaces installed outside enclosed indoor spaces. Material, ink, surface treatment, and adhesive requirements should be evaluated according to sunlight, moisture, temperature changes, and installation conditions.
Although these industries use different types of equipment, the role of the graphic overlay remains similar: it connects printed information with displays, buttons, indicators, and the product housing to form a clear and coordinated interface.
Each graphic overlay is developed around the equipment structure, interface layout, installation surface, and operating conditions. Spar Panel provides OEM production for acrylic, polycarbonate, and PET panels with printed graphics, display windows, precision openings, embossed areas, adhesive backing, backlit zones, and customized surface finishes.
Before production, our team can review drawings, artwork, product photos, samples, and key application requirements to confirm the material, structure, printing method, and processing plan. AI, PDF, DWG, DXF, and CDR files can be used for project evaluation.
Thank you for reading. For custom graphic overlays based on your drawings and product requirements, please contact Spar Panel to discuss your project.
A graphic overlay helps display operating information, identify control areas, provide a degree of surface protection, and improve the completed appearance of the product interface.
Polycarbonate and polyester are commonly used. PC supports clear visual presentation and display-window designs, while PET provides dimensional stability and stable performance during regular use.
Yes. Graphic overlays can include transparent, tinted, translucent, frosted, or hidden display windows for LCD screens, LED indicators, digital displays, sensors, and other internal modules.
Yes. Both PC and PET overlays can include embossed buttons, symbols, logos, or rim embossing. PET is generally preferred for frequently pressed buttons because it better supports repeated flexing.
A custom quotation normally requires the drawing or artwork, dimensions, material, thickness, printing colors, window details, embossing requirements, adhesive requirements, application environment, and order quantity.
